Nichia LED NCSU334A UVC 55mW 280nm 1.8W with 30x30mm PCB

Nichia LED NCSU334A UVC 55mW 280nm 1.8W with 30x30mm PCB

High-performance UV-C LED with 55mW radiant power at 280nm
PCB version, easy to install with basic soldering iron
High-quality German-made PCB for best heat transfer and longer LED lifetimes
Minimal energy consumption of 1.9W
Ideal for disinfection from viruses and bacteria
Can achieve a 99% kill rate in less than 20 seconds from a distance of 50mm
Nichia is the largest LED manufacturer in the world, renowned for inventing the blue and white LED
Nichia's research department is constantly innovating and setting new efficiency records
The Nichia brand is known for durability, brightness, and homogeneity, with a fine selection of products for professional processing.

€87.49

Ships in 2-4 weeks

SKU

36289

Lumistrips is brand of high performance LED light solutions made in Germany. As part of the early success of LEDs we have extensive application knowledge from a wide range of sectors. Since 2010, we have developed and produced high quality LED strips & modules in a state-of-the-art production facility in Germany. Our LED strips and modules, internationally sold under the LUMISTRIPS brand, use original packaged LEDs from NICHIA, SEOUL SEMICONDUCTOR or SAMSUNG combined with the best PCB and circuit materials.

Our products have been used successfully in a wide range of applications by customers in Europe, North & South America, Asia, Australia.

The NCSU334A is high performance UV-C LED from Nichia, with 55mW of radiant power at a minimal energy consumption of 1.8W. This high-performance LED is ideal for applications in the field of disinfection from viruses and bacteria, and can be used for surface disinfection of objects, with a 99% kill rate achievable in less than 20 seconds from a distance of 50 mm (data for NCSU334A).

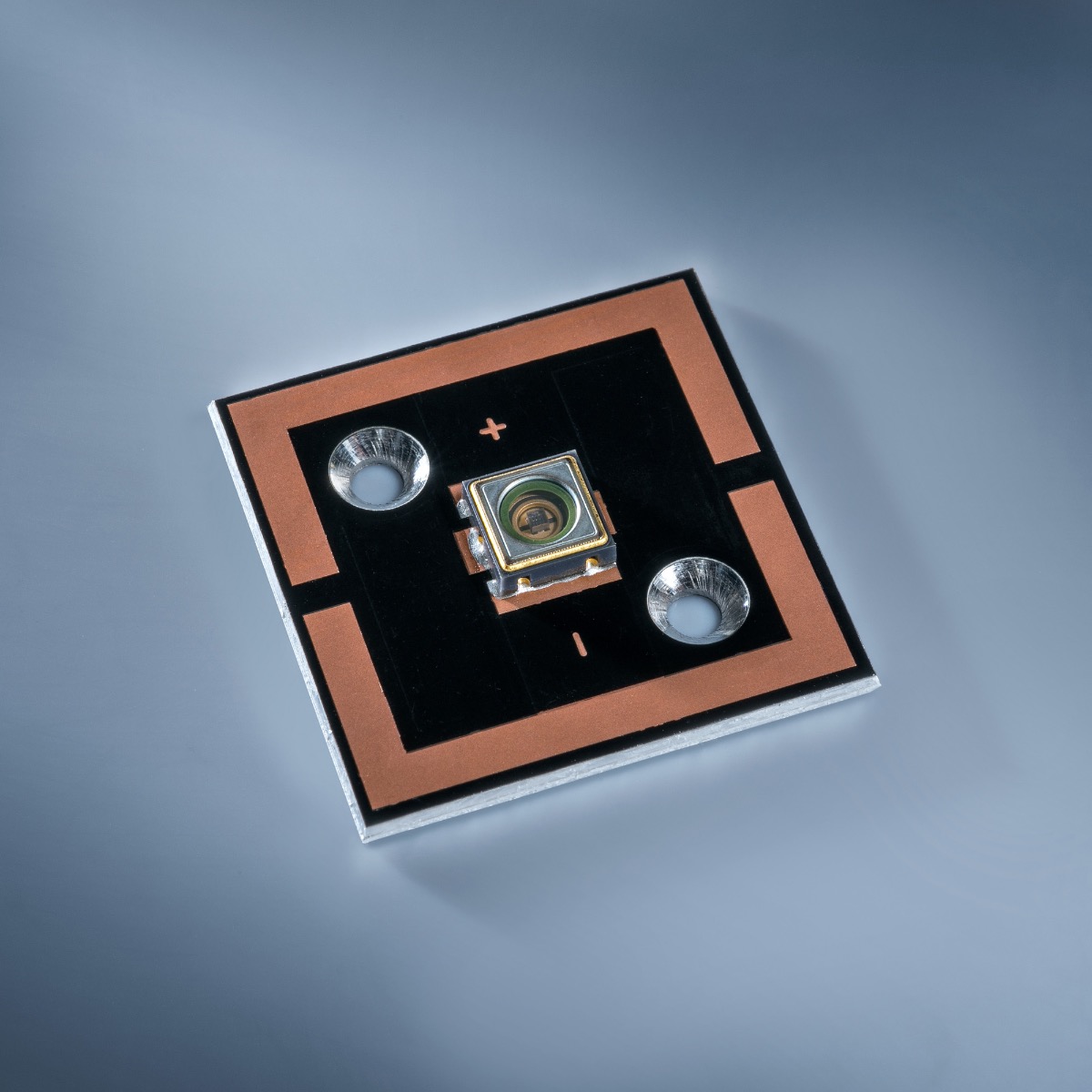

Our PCB UVC LED modules make it easy for you to utilize the power of the high-performance Nichia LED in your application without needing a sophisticated soldering station or reflow soldering. The 30x30mm square PCB is manufactured in Germany, ensuring the highest quality and best heat transfer, leading to longer LED lifetimes. Solder pads are easily connected with a basic soldering iron, making the PCB LED ideal for small projects, rapid prototyping, or custom builds.

This performance increases the range of possible applications in the filed of disinfection from viruses and bacteria. One or a small number of Nichia UVC LEDs can be used for surface disinfection of objects, with 99% kill rate achievable in less than 20 seconds from a distance of 50 mm.

Nichia 280nm Disinfection

A combination of UVC and UVA LEDs can substantially increase the disinfection capability, as detailed in this article on our blog.

Nichia is the largest LED manufacturer in the world, known for inventing the blue and white light-emitting diode. Nichia's innovative research department is always pushing the boundaries of efficiency and regularly sets new records. The Nichia brand is known for its durability, brightness, and homogeneity, with a fine selection of products that offer great added value for professional processing.

Features

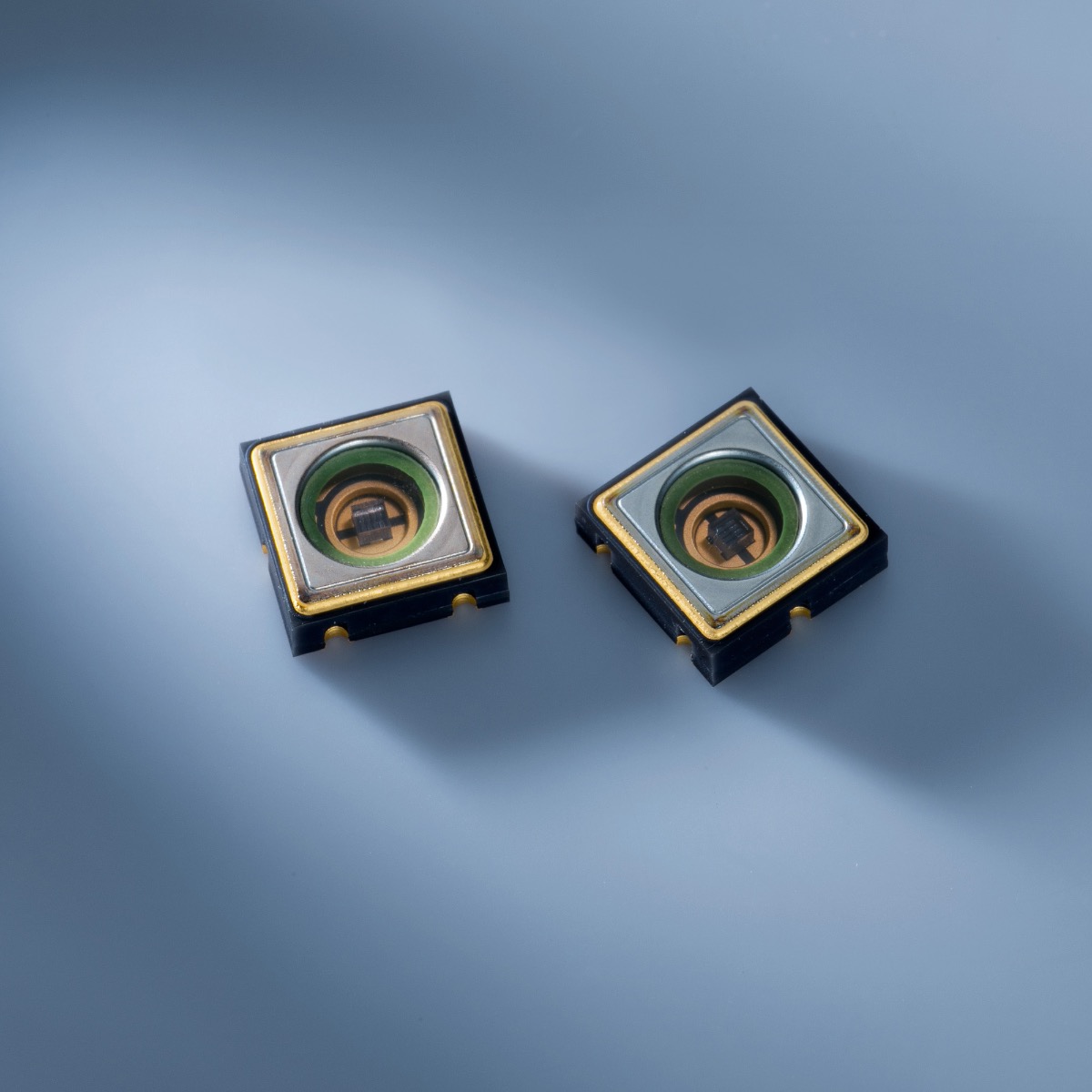

High performance UVC NCSU334A SMD LED with 280nm and 55mW typical radiant power
LED installed on 30x30mm PCB with cooling purpose and for easy installation with a soldering iron
Typical voltage 5.2V, current 350mA
Typical power consumption: 1.82W
120 deg viewing angle
Dimensions (LxWxH): 6.8x6.8x2.12mm

Application areas

Disinfection
Sterilization

Warning Actinic UV danger for eyes and skin

Ultra violet radiation in the wavelength range of 200-400nm may cause inflammation of the cornea as well as a UV erythema (sunburn) of the skin. The biological effectiveness of the UV radiation varies in the stated wavelength range and is described with the spectral response function (weighting scale) SUV.

See PDF documents for data sheet, safety warning and product guide.

Technical Data
SKU	36289
Weight brut (g)	1.000000
LED Size	6.8x6.8 mm
LED Family	Nichia UV (New!)
LED Application	Disinfection
LED Installation Package	3x3 cm PCB
Color	UVC Ultraviolet
Viewing Angle	120°
Forward Current Typ	350ma
Forward Voltage Typ (V)	5.2
Power (W)	1.82
Wavelength (nm)	280
Manufacturer Product Code	NCSU334AT UV-C
Brand	Lumistrips
Availability beyond shown stock:	NO
