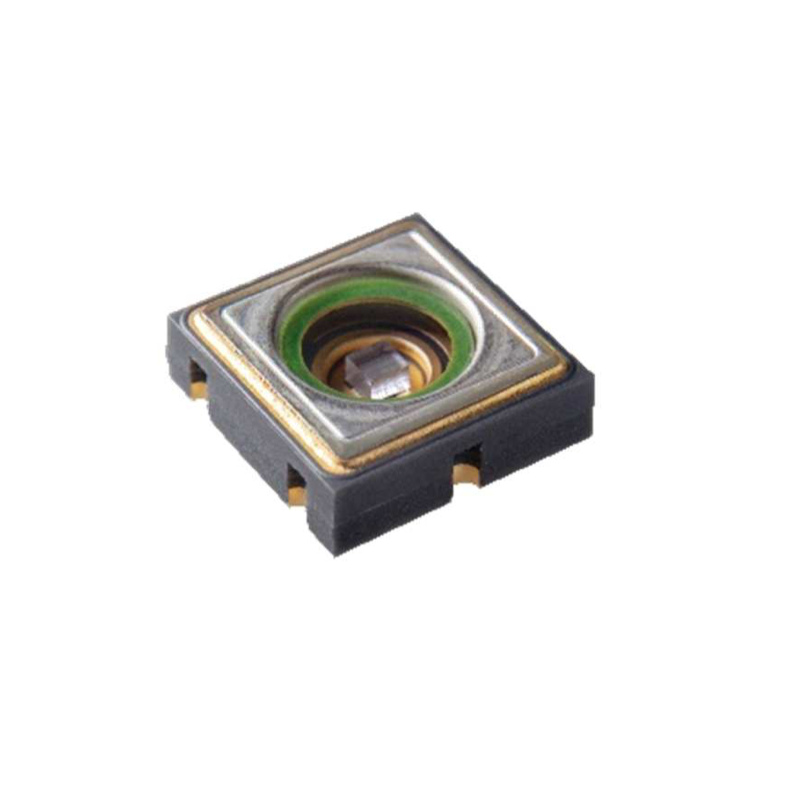

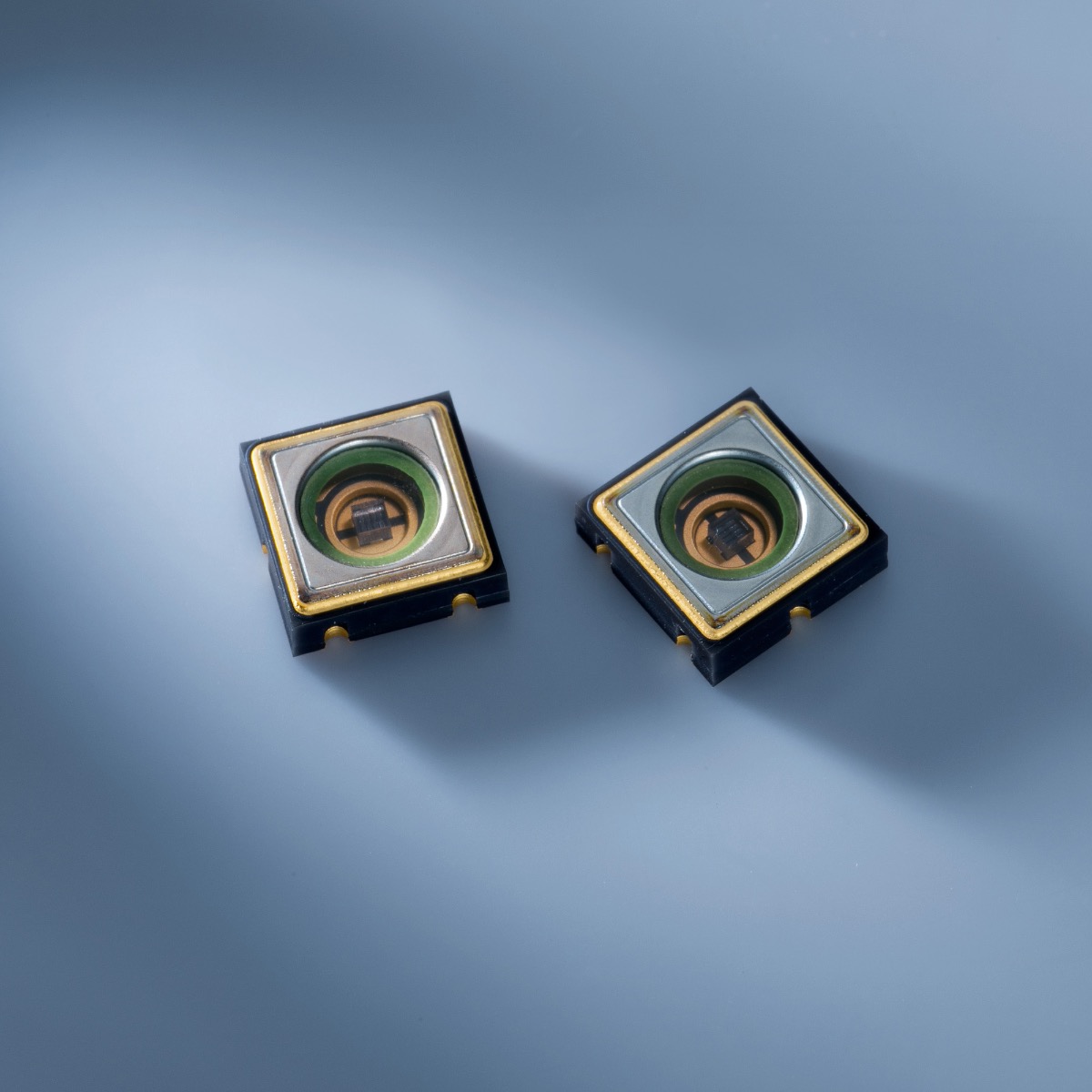

Nichia LED NCSU334B UVC 70mW 280nm 1.9W

High-performance UV-C LED with 70mW radiant power at 280nm
Highest Radiant flux for single chip LEDs
Minimal energy consumption of 1.9W
Ideal for disinfection from viruses and bacteria
Can achieve a 99% kill rate in less than 20 seconds from a distance of 50mm
Nichia is the largest LED manufacturer in the world, renowned for inventing the blue and white LED
Nichia's research department is constantly innovating and setting new efficiency records
The Nichia brand is known for durability, brightness, and homogeneity, with a fine selection of products for professional processing.

€80.98

Stock Germany >10 pcs

SKU

36888

Buy 50 for €75.00 each and save 7%

Lumistrips is brand of high performance LED light solutions made in Germany. As part of the early success of LEDs we have extensive application knowledge from a wide range of sectors. Since 2010, we have developed and produced high quality LED strips & modules in a state-of-the-art production facility in Germany. Our LED strips and modules, internationally sold under the LUMISTRIPS brand, use original packaged LEDs from NICHIA, SEOUL SEMICONDUCTOR or SAMSUNG combined with the best PCB and circuit materials.

Our products have been used successfully in a wide range of applications by customers in Europe, North & South America, Asia, Australia.

The NCSU334B is a top-of-the-line UV-C LED from Nichia, boasting 70mW of radiant power at a minimal energy consumption of 1.9W. This high-performance LED is ideal for applications in the field of disinfection from viruses and bacteria, and can be used for surface disinfection of objects, with a 99% kill rate achievable in less than 20 seconds from a distance of 50 mm (data for NCSU334A).

Nichia is the largest LED manufacturer in the world, renowned for inventing the blue and white light-emitting diode. Nichia's innovative research department is always at the forefront of efficiency and regularly sets new records. Durability, brightness, and homogeneity are among the major strengths of the Nichia brand, with a fine selection of products that offer great added value for professional processing.

This performance increases the range of possible applications in the filed of disinfection from viruses and bacteria. One or a small number of Nichia UVC LEDs can be used for surface disinfection of objects, with 99% kill rate achievable in less than 20 seconds from a distance of 50 mm (data for NCSU334A).

Nichia 280nm Disinfection

A combination of UVC and UVA LEDs can substantially increase the disinfection capability, as detailed in this article on our blog.

Features

High performance UVC NCSU334B SMD LED with 280nm and 70mW typical radiant power
Typical voltage 5.5V, current 350mA
Typical power consumption: 1.9W
120 deg viewing angle
Dimensions (LxWxH): 6.8x6.8x2.12mm

Application areas

Disinfection
Sterilization

Warning Actinic UV danger for eyes and skin

Ultra violet radiation in the wavelength range of 200-400nm may cause inflammation of the cornea as well as a UV erythema (sunburn) of the skin. The biological effectiveness of the UV radiation varies in the stated wavelength range and is described with the spectral response function (weighting scale) SUV.

See PDF documents for data sheet, safety warning and product guide.

Technical Data
SKU	36888
Weight brut (g)	1.000000
LED Size	6.8x6.8 mm
LED Family	Nichia UV (New!)
LED Application	Disinfection
LED Installation Package	Emitter
Color	UVC Ultraviolet
Viewing Angle	120°
Forward Current Typ	350ma
Forward Voltage Typ (V)	5.2
Power (W)	1.82
Wavelength (nm)	280
Manufacturer Product Code	NCSU334BT UV-C
Brand	Lumistrips
