BackMatrix-49-2080 Ultra-wide light distribution Nichia Cube LED Module 49 LEDs 28x28cm 24V 5000K Neutral White 1340lm (16000 lm/sqm)
- 49 Nichia Cube LEDs with an ultra-wide light distribution
- Neutral White 5000K, CRI>80
- 1340 lm per module, about 17,100 lm/m²
- Efficacy of about 135 lm/W
- 24 V DC constant voltage, 9.9 W (413 mA) per module
- Color consistency to a 3-step MacAdam ellipse
- Lifetime of more than 60,000 hours (L80B10)
- Made in Germany, 3-year warranty
BackMatrix-49-2080 Nichia Cube LED Module Neutral White 5000K, Ultra-Wide Light Distribution, 28 x 28 cm

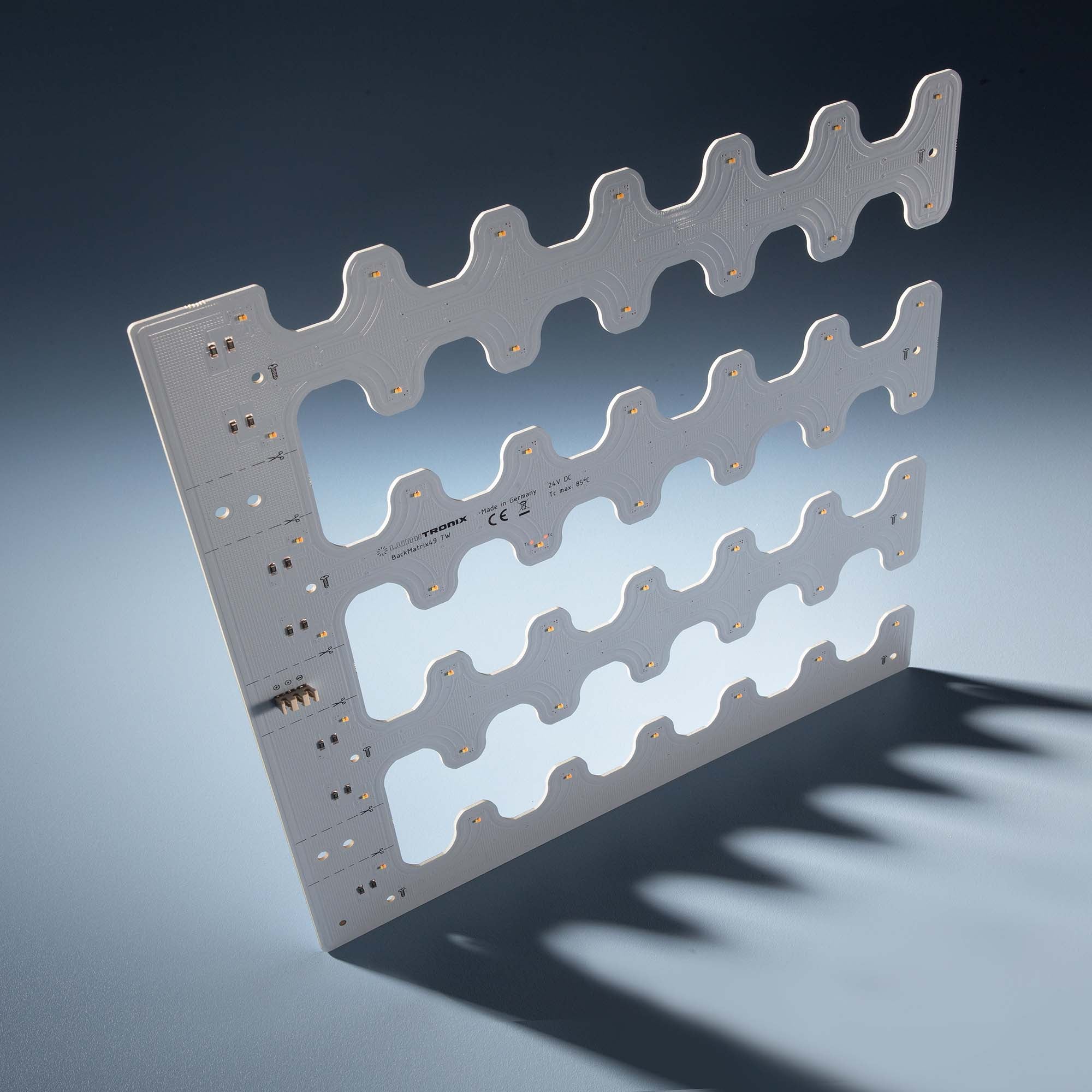

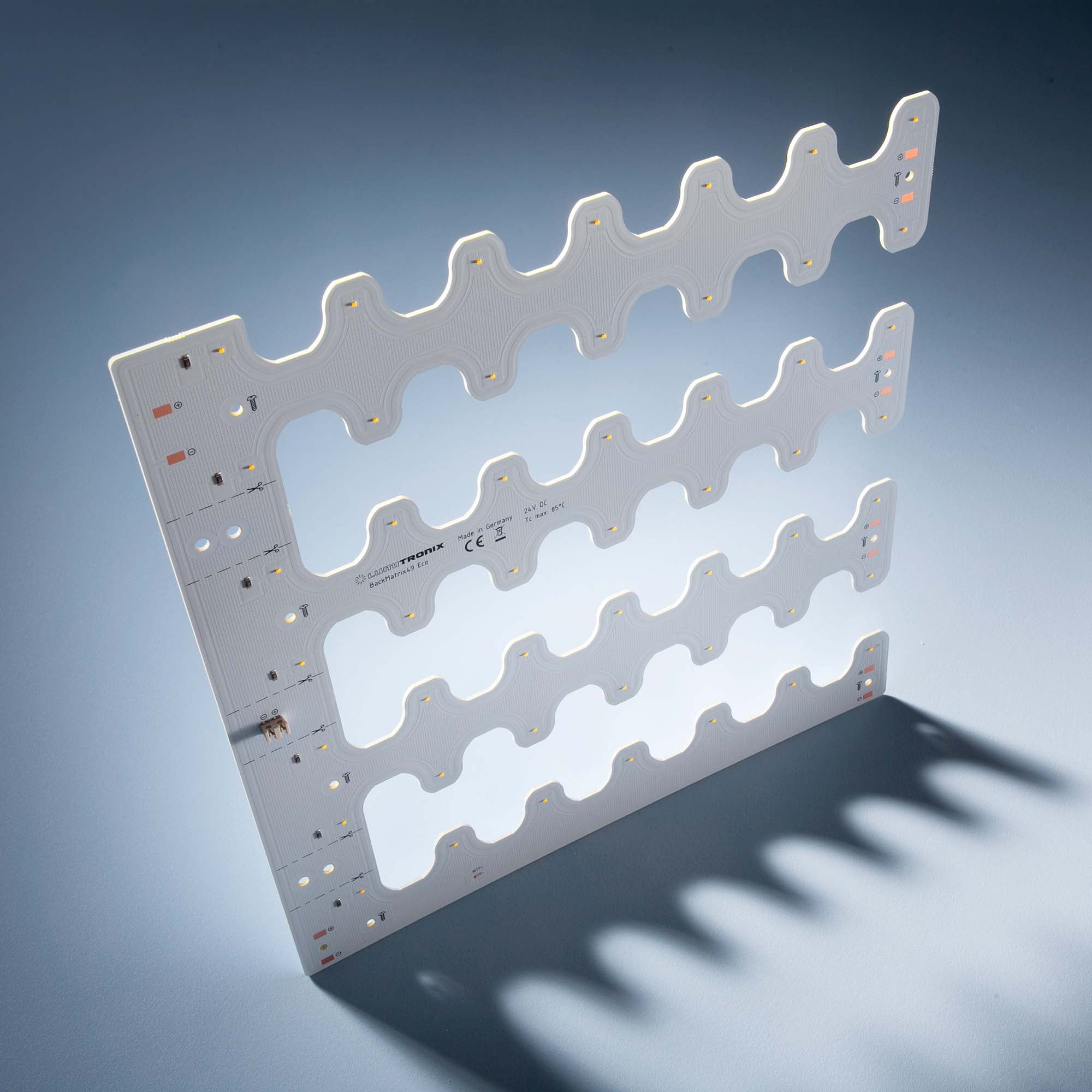

The BackMatrix-49-2080 Cube 5000K is a large LED module made for backlighting: light boxes, illuminated signs, billboards and luminous ceilings. Its 49 Nichia Cube LEDs with an ultra-wide light distribution are distributed evenly over a 280 x 280 mm board, so the light blends into a uniform surface behind a diffuser even at a short distance, which allows shallow constructions with fewer visible hotspots. One module delivers 1340 lm of neutral white 5000K light at about 9.9 W, an efficacy of about 135 lm/W, about 17,100 lm per square meter.
The module operates at 24 V constant voltage, needs no additional cooling, and LEDs binned to a 3-step MacAdam ellipse keep the light uniform across many modules. The 5000K light color creates a neutral, daylight-like white light that keeps colors crisp and supports concentration. BackMatrix modules are made in Germany and backed by a 3-year warranty.
Features of the BackMatrix-49-2080 Cube LED Module 5000K
- 49 Nichia Cube LEDs with an ultra-wide light distribution
- Neutral White 5000K, CRI>80
- 1340 lm per module, about 17,100 lm/m²
- Efficacy of about 135 lm/W
- 24 V DC constant voltage, 9.9 W (413 mA) per module
- Color consistency to a 3-step MacAdam ellipse
- Lifetime of more than 60,000 hours (L80B10)
- Dimmable
- No additional cooling required
- Dimensions: 280 x 280 x 6.65 mm
- Made in Germany
- 3-year warranty
Applications of the BackMatrix-49-2080 Cube LED Module 5000K
Designed for even backlighting of large surfaces, the BackMatrix-49-2080 Cube is used in the following main applications:
- Billboards and luminous ceilings: For backlit billboards, large light boxes and luminous ceilings, BackMatrix-49-2080 Cube modules are mounted side by side behind the translucent surface to light it evenly from edge to edge. See our LED modules for luminous ceilings.
- Signage: In illuminated signs, logos and display boxes, the modules provide bright, uniform backlighting with a low number of components. The wide light distribution keeps light boxes and signs shallow. More about LED modules for signage backlighting.
- Backlighting behind translucent materials: Behind stretch ceilings, acrylic, onyx, marble, textiles or printed graphics, BackMatrix modules create evenly lit walls, ceilings, counters and 3D elements, as well as displays at trade fairs and exhibitions. Read our guide on how to create a light ceiling with LED modules.
- White light: The module provides clean, uniform white light with CRI above 80 for advertising and architectural surfaces. The 5000K color temperature gives a neutral, daylight-like white light that keeps colors crisp and supports concentration. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.
Why BackMatrix for Large Illuminated Surfaces

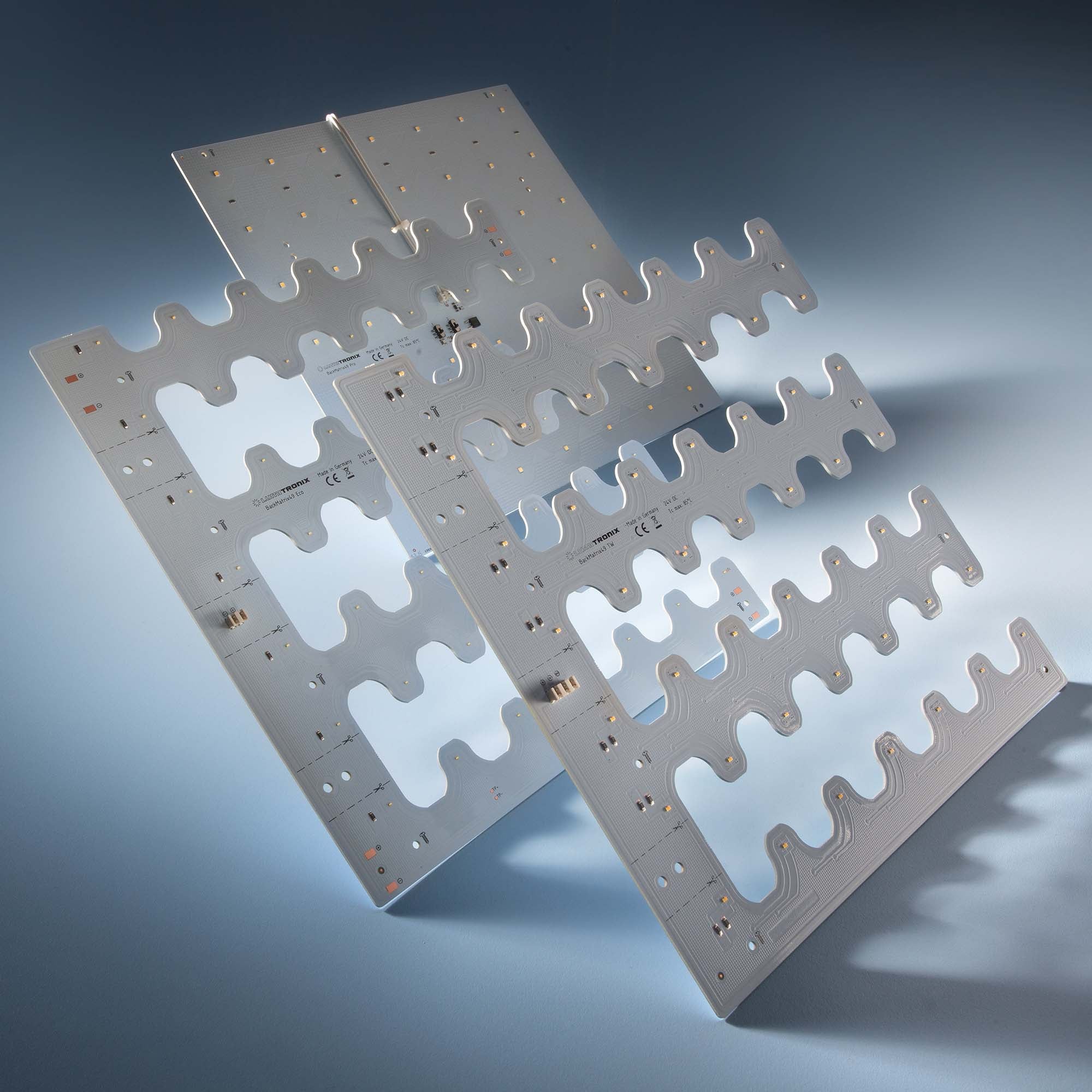

- Fewer parts per square meter: each module covers 280 x 280 mm with an even grid of Nichia LEDs, so about 13 modules light one square meter, much faster to install than rows of LED strips or many small modules.
- Even light distribution: the regular LED grid blends into a uniform surface behind a diffuser, without visible hotspots, the basis for homogeneous light boxes, signs and luminous ceilings. Match the distance to the diffuser to the LED spacing and the beam angle, as described in our guide on LED pitch and distance to cover for optimum backlighting.
- Simple 24 V system: modules are connected in parallel to one 24 V constant voltage power supply, so any number of modules can be combined to the size of the surface, limited only by the power supply and the cable cross-section.
- Consistent color: Nichia LEDs binned to a 3-step MacAdam ellipse keep brightness and light color uniform across all modules of a large surface.
Technical Data of the BackMatrix-49-2080 Cube LED Module 5000K
- Article number (SKU): 45315
- LED manufacturer: Nichia (Cube LEDs)
- Light color: Neutral White, 5000K
- Color rendering index: CRI (Ra) >80
- Binning: 3-step MacAdam ellipse
- Luminous flux: 1340 lm per module, about 17,100 lm/m²
- Efficacy: 135 lm/W (calculated)
- Beam angle: ultra-wide
- Lifetime: >60,000 h (L80B10C1)
- Operating mode: Constant voltage, 24 V DC, dimmable
- Current: 413 mA per module
- Power: 9.9 W per module
- Number of LEDs: 49
- Dimensions: 280 x 280 x 6.65 mm
Installation and Operation
- Mounting: fix the module flat on a stable surface, supporting the board at suitable mounting points; do not bend the board or clamp the components. No additional cooling is required.
- Connection: connect the modules to the 24 V supply at their connection points, observing the polarity.
- Power supply: connect several modules in parallel to a stabilized 24 V DC constant voltage LED driver with short-circuit, overload and overtemperature protection, sized for the total load (9.9 W per module) plus a safety margin. For large surfaces, feed the modules in groups with adequately sized cables to keep the voltage drop low.
- Handling: observe standard ESD precautions, keep the modules away from aggressive chemicals, and store and operate them at 10% to 60% relative humidity.
- Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.
Why the BackMatrix-49-2080 Cube Outperforms Low-Cost LED Modules
Compared with low-cost LED modules, the BackMatrix-49-2080 Cube differs in three areas that decide how long a lighting installation performs well:
- LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
- PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
- Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.
Who We Are: Ledrise, Professional LED Strips Made in Germany
Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.
We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.
Our Quality Promise
- Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
- Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
- Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
- Full traceability: production batches are marked and tracked with laser-engraved barcodes.
- Honest data: the performance values in our datasheets match those in real-world applications.
- Long-term security: a 3-year warranty on this LED strip (see our warranty terms) and professional support for your lighting projects.
Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
| SKU | 45315 |
|---|---|
| Weight brut (g) | 166.000000 |
| Color | Neutral White |
| Color Temperature | 5000K |
| Color Rendering Index | 80 |
| Bright like (W) | 89 |
| Luminous Flux Typ (lm) | 1340 |
| Efficacy (lm per W) | 135 |
| Energy Class 2022 | E |
| Power (W) | 9.90 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 36 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 45315 |
| Product Family | BackMatrix2080 |
| Strip Type | Rigid |
| LEDs number per sales unit | 49 |
| Dimensions | 280 x 280 x 6.65 mm |
| Dimensions: Length (cm) | 280 |
| Dimensions: Width (mm) | 280 |
| Dimensions: Height (mm) | 6.65 |
| Brand | Lumistrips |
| Forward Voltage Typ (V) | 24 |
