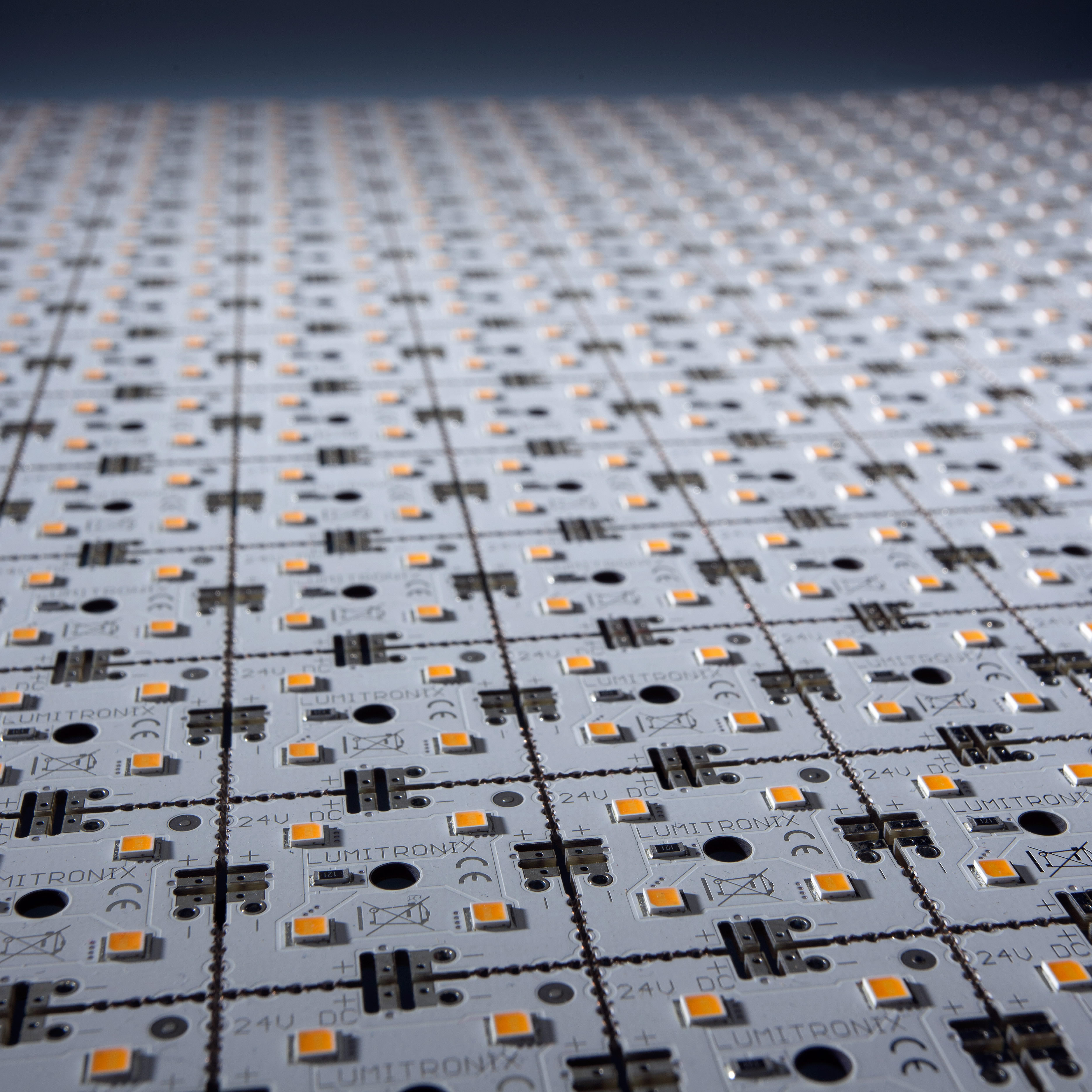

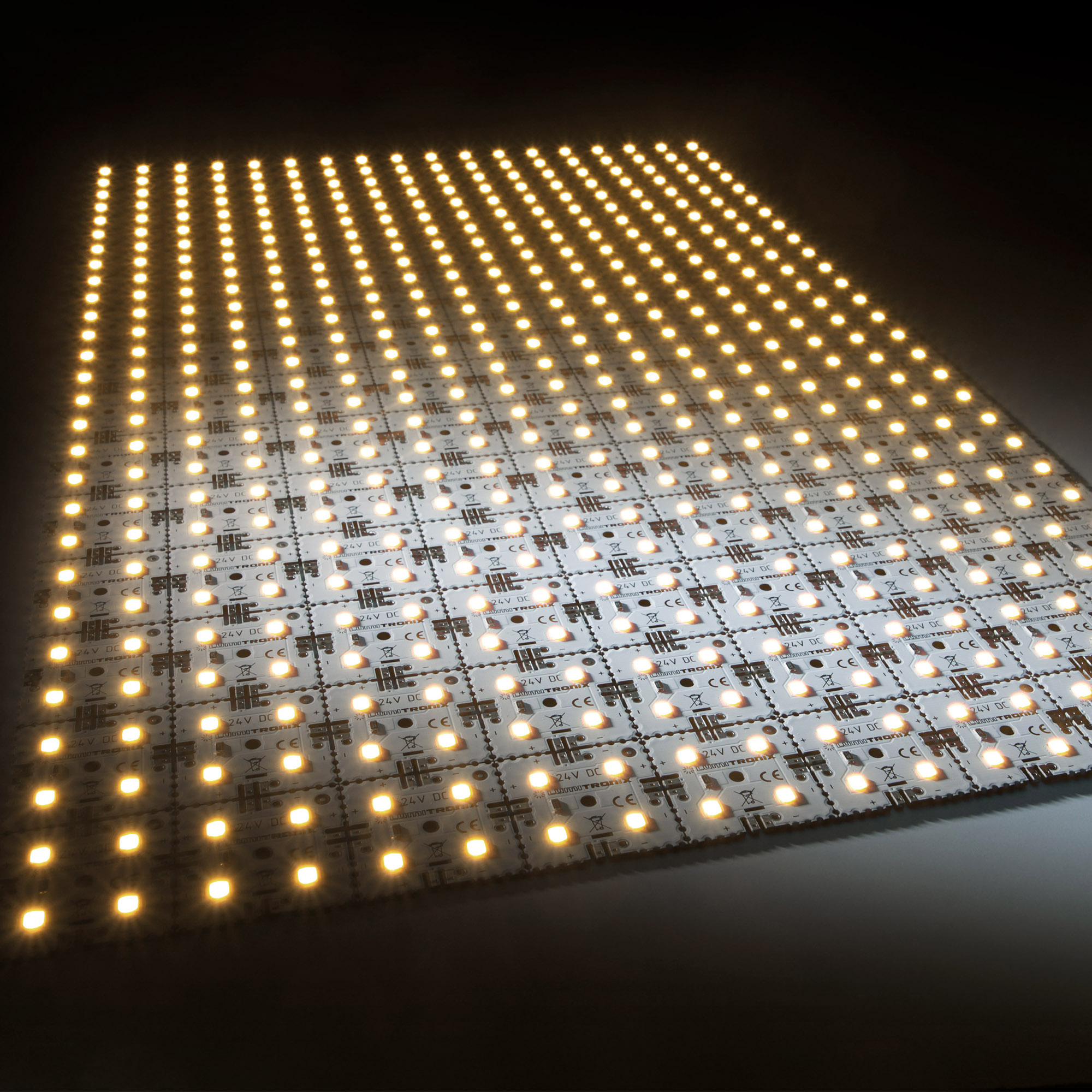

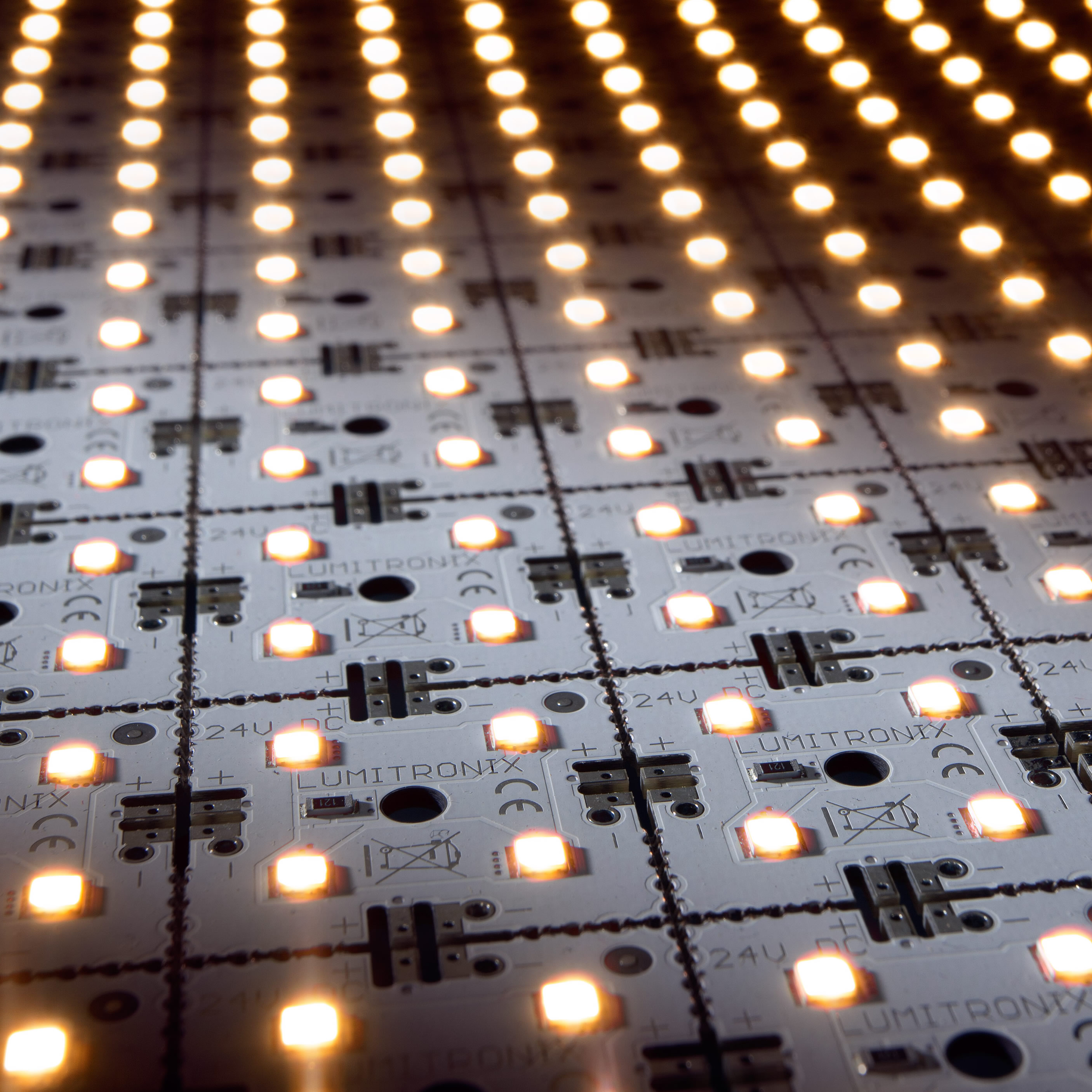

MatrixMini-126-4080 Nichia LED Module (9x14) warm white 2700K 8610lm 504 LEDs 24V 60.5W 27x42cm (75000 lm/sqm)

MatrixMini-126-4080 Nichia LED Module (9x14) warm white 2700K 8610lm 504 LEDs 24V 60.5W 27x42cm (75000 lm/sqm)

MatrixMini-126-4080 Nichia LED Module (9x14) warm white 2700K 8610lm 504 LEDs 24V 60.5W 27x42cm (75000 lm/sqm)
MatrixMini-126-4080 Nichia LED Module (9x14) warm white 2700K 8610lm 504 LEDs 24V 60.5W 27x42cm (75000 lm/sqm) MatrixMini-126-4080 Nichia LED Module (9x14) warm white 2700K 8610lm 504 LEDs 24V 60.5W 27x42cm (75000 lm/sqm) MatrixMini-126-4080 Nichia LED Module (9x14) warm white 2700K 8610lm 504 LEDs 24V 60.5W 27x42cm (75000 lm/sqm) MatrixMini-126-4080 Nichia LED Module (9x14) warm white 2700K 8610lm 504 LEDs 24V 60.5W 27x42cm (75000 lm/sqm)

MatrixMini-126-4080 Nichia LED Module (9x14) warm white 2700K 8610lm 504 LEDs 24V 60.5W 27x42cm (75000 lm/sqm)

  • Provides uniform, economical and durable backlighting for large, light surfaces
  • Innovative Plug & Play interconnect system for easy creation of various light shapes
  • Ultra-high luminous flux of 9.610lm (75.000 lm per square meter) at 2700K with high efficiency and durability
  • High performance Nichia 757 LEDs with a minimum power consumption and a lifetime of over 100,000 hours
  • Compact structure allows for maximum flexibility and easy installation
  • Can be used as a technical module, luminary, or for creating promotional signs and ambiance lighting
  • Comes with a 5-year warranty, extendable to 7 years in some cases
  • Ideal for projects requiring intense light, such as backlighting behind translucent surfaces, construction of lighting fixtures, and general lighting in various settings.
€167.89
Stock Germany >10 pcs
SKU
52709

Lumistrips is brand of high performance LED light solutions made in Germany. As part of the early success of LEDs we have extensive application knowledge from a wide range of sectors. Since 2010, we have developed and produced high quality LED strips & modules in a state-of-the-art production facility in Germany. Our LED strips and modules, internationally sold under the LUMISTRIPS brand, use original packaged LEDs from NICHIA, SEOUL SEMICONDUCTOR or SAMSUNG combined with the best PCB and circuit materials.

Our products have been used successfully in a wide range of applications by customers in Europe, North & South America, Asia, Australia.

Blog Posts (12)

The MatrixMini modules provide an ideal solution for building luminaires with large, light surfaces that require uniform, economical and durable backlighting. These 3x3 cm modules come equipped with an innovative Plug & Play interconnect system that makes it easy to build a wide variety of light shapes for diverse applications. The large MatrixMini module, is perfect for room lighting or large surface light fixtures. The LED color temperature of 2700K with CRI85+ provides an excellent lighting quality, and the luminous flux of 8610lm at a typical power consumption of 60.5W at 24V provides an excellent level of brightness.

Creativity is at its best with the MatrixMini 4 LED modules, which can be ordered in fully pre-assembled forms that can also be separated into smaller modules up to 3x3 cm. The Matrix can be delivered in one piece with a size of up to 19 x 14 segments (4 LEDs per segment) and operates like one large PCB. Although the Matrix can be separated by hand without any tools, each segment works individually. With connectors on each side of the square segment, long strings, complex shapes, or large surfaces can be built with ease. The individual Matrix segments can be effortlessly connected with direct connectors, and no soldering is required.

The Matrix is not just a technical module that can be used for promotional signs, illuminated letters, or ambiance lighting. It can also be installed directly to the ceiling or wall without any provisions (24 V) as a technical luminary. The Ledrise LED Matrix concept offers an unlimited variety of options with a single product. Whether large letters, long strings, or huge surfaces, the MatrixMini is the best choice for projects requiring intense light with LEDs installed in shapes inside luminaires, directly visible, or behind a translucent material (plexiglass, stone, marble, barisol).

The Matrix is designed to provide easy installation, and the use of high-performance Nichia 757 LEDs ensures a minimum power consumption and a lifetime of over 100,000 hours. Thanks to innovative techniques used in the design of the PCB, the LED efficiency stands at a minimum of 143 lm/Watt, and the Matrix barely gets warm, with no need for cooling. The warranty for the Nichia LED Matrix is five years, which can be extended up to seven years in some cases. The investment is secured over time and quickly returned due to minimal maintenance costs and reduced power consumption.

The MatrixMini features ultra-high luminous flux of up to 83,700 lm per square meter, providing a cost-effective solution that is highly efficient and durable. It is highly flexible due to its compact structure, and each Matrix segment can be combined with other segments as desired. The Matrix segments can be seamlessly connected together with direct connectors, and the product comes with holes for fixation with screws.

With Made in Germany quality, the MatrixMini is perfect for construction of light forms, backlighting behind translucent surfaces, illuminated showcases, construction of lighting fixtures or LED panels, general lighting, and the reconstruction/refitting of old luminaries to LED technology.

The freedom of creativity is enhanced by the fact that the MatrixMini 4 LED modules can be ordered in fully  pre-assembled forms that can also be separated into smaller modules up to 3x3 cm:

  • MatrixMini-4-4080: 4 modules in a square of 6x6cm
  • MatrixMini-25-4080: 25 modules in a square of 15x15cm
  • MatrixMini-9-4080: 9 modules in a line of 27x3cm
  • MatrixMini-126-4080: 126 modules in a rectangle of 42x27cm

Features

  • Ultra high luminous flux of up to 83.700 lm per square meter
  • Cost reduction thanks to very high efficiency and durability
  • Each Matrix segment can be combined with other segments as desired
  • With our direct connectors the Matrix segments can be seamlessly connected together as usual
  • Highest flexibility thanks to compact structure
  • Easy installation
  • High quality Nichia 757G LEDs
  • Combine with our Multibar strips & accessories
  • Free design: strips, surfaces, shapes
  • Holes for the fixation with screws
  • 5 years warranty
  • Made in Germany

Application areas

  • Construction of light forms
  • Backlight behind translucent surfaces of barisol, plexiglass, stone, etc ...
  • Illuminated showcases
  • Construction of lighting fixtures or LED panels
  • General lighting with a long lifetime in shops, offices, TV studios, cabinets, clinics or in the home
  • Reconstruction/refitting of old luminaries to LED technology

Technical data:

  • 126 modules in a rectangle of 42x27 cm with 504 Nichia 757G LEDs
  • Color temperature 2700K with CRI85+
  • Luminous flux 8610lm
  • Typical power consumtion 60.5W at 24V
  • (LxWxH) 30 x 30 x 2.5mm (each segment)
  • Diameter borehole: approx. 3mm
  • Distance boreholes (centre/centre): approx. 30 mm
Technical Data
SKU 52709
Weight brut (g) 270.000000
Color Warm White
Color Temperature 2700K
Color Rendering Index 85
Luminous Flux Typ (lm) 8610
Efficacy (lm per W) 117
Energy Class 2022 E
Power (W) 60.5
Viewing Angle 120°
Warranty (months) 60
Lifetime for residential, 3h daily (yrs) 92
Product lifetime (h) 100000
Lifetime for commercial, 12h daily (yrs) 23
Forward Current Max 2520mA
Manufacturer Product Code 52709
Product Family MatrixMini4080
Strip Type Rigid
LEDs number per sales unit 504
Dimensions 270x420
Dimensions: Length (cm) 27
Dimensions: Width (mm) 42
Brand Lumistrips
Forward Voltage Typ (V) 24
Availability beyond shown stock: YES
