MatrixMini-9-4080 Nichia LED Module (9x1) warm white 2700K 615lm 36 LEDs 24V 4.3W 27x3cm (75000 lm/sqm)

The MatrixMini LED modules offer a highly versatile solution for constructing luminaires with large, light surfaces in a uniform, economical, and durable way. Each MatrixMini module measures 3x3 cm and is equipped with an innovative Plug & Play interconnect system, making it easy to build a wide variety of light shapes for diverse applications. The line of 9 MatrixMini modules is ideal for building linear lighting fixtures.

With the MatrixMini 4 LED modules, creativity is enhanced as they can be ordered in fully pre-assembled forms that can also be separated into smaller modules up to 3x3 cm. Easy installation is just one of the strengths of these modules. The MatrixMini uses high-performance Nichia 757 LEDs that provide a huge light output of up to 80,000 lm/square meter with minimal power consumption and a lifetime of over 100,000 hours.

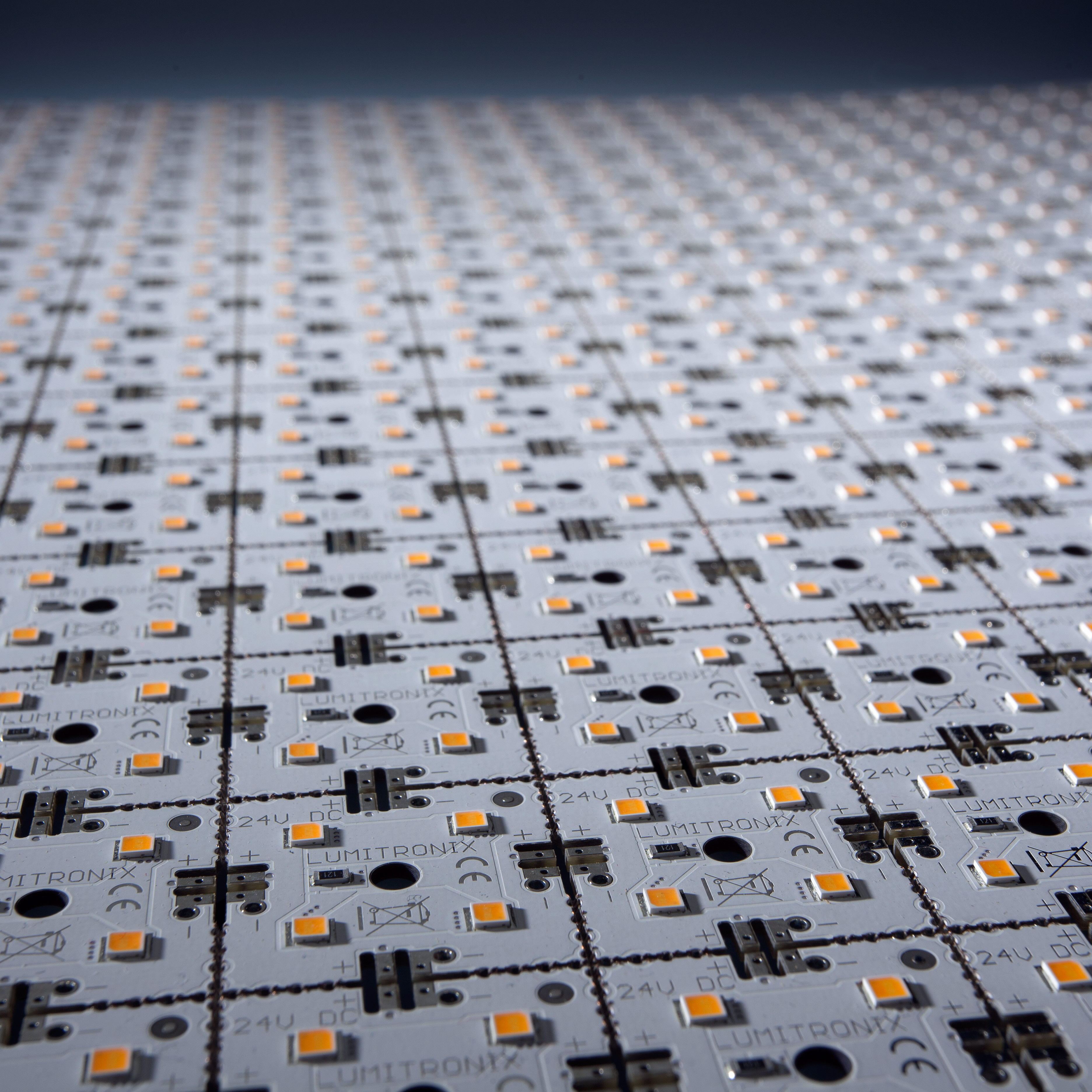

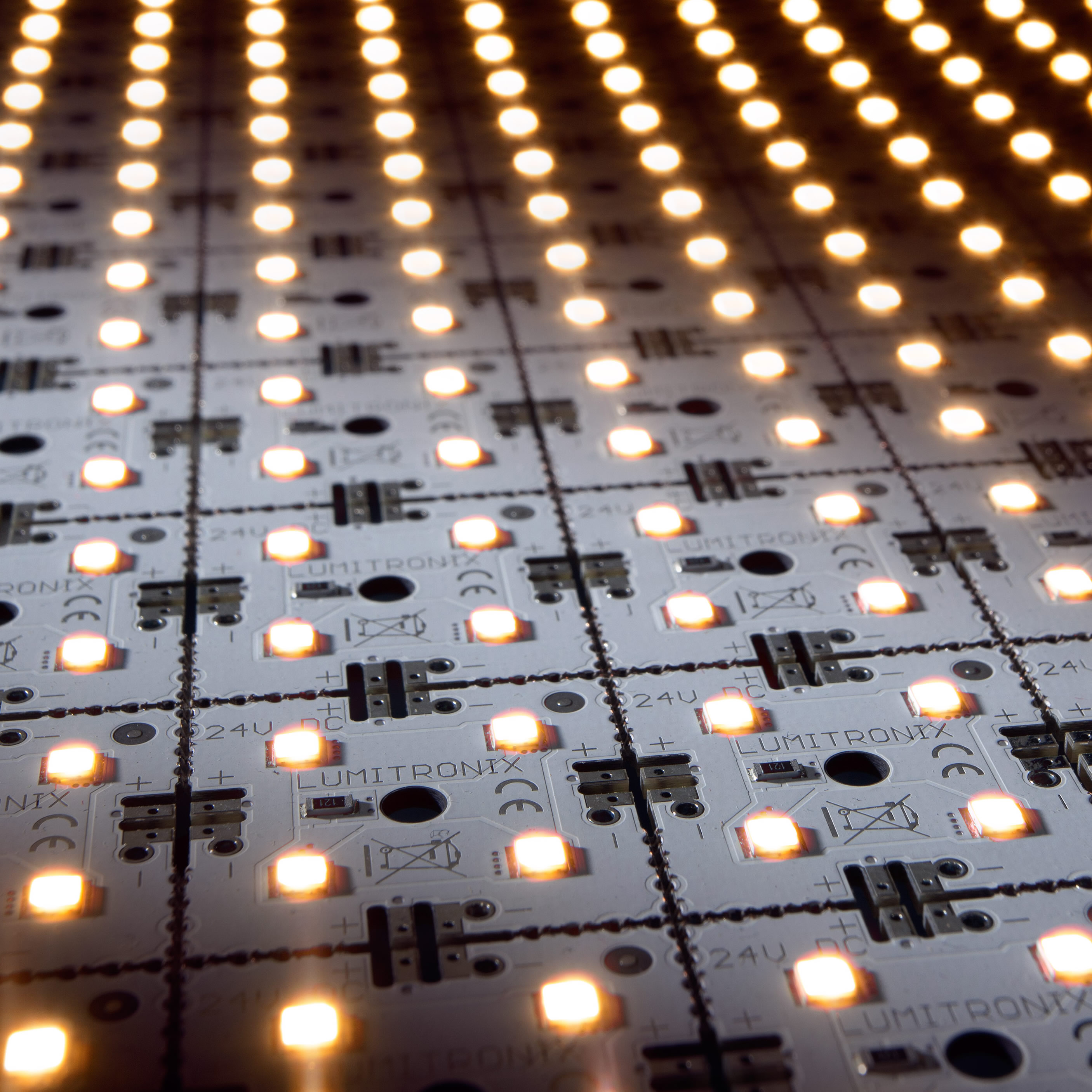

The innovative PCB design techniques used in the MatrixMini have made it highly efficient, with an LED efficiency of at least 143 lm/Watt and minimal heat output, making cooling unnecessary. The Matrix can be delivered in one piece with a size of up to 19 x 14 segments and can operate like one large PCB. The Matrix can also be separated by hand without any tools, and each segment works individually. Each of the four sides of the square segment provides connectors, allowing for the building of long strings, complex shapes, or large surfaces with ease.

The MatrixMini LED modules can be installed directly on the ceiling or wall without any provisions (24 V) as a technical luminary, and can also serve as a technical module for promotional signs, illuminated letters, or ambiance lighting. The Ledrise LED Matrix concept allows for unlimited variety with one single product.

MatrixMini is an excellent choice for projects requiring intense light, with LEDs installed in shapes inside luminaires, directly visible or behind a translucent material (plexiglass, stone, marble, barisol). The warranty for Nichia LED Matrix is 5 years and can be extended up to 7 years in some cases, ensuring the investment is secured over time and quickly returned due to minimal maintenance costs and reduced power consumption.

The freedom of creativity is enhanced by the fact that the MatrixMini 4 LED modules can be ordered in fully  pre-assembled forms that can also be separated into smaller modules up to 3x3 cm:

• MatrixMini-4-4080: 4 modules in a square of 6x6cm
• MatrixMini-25-4080: 25 modules in a square of 15x15cm

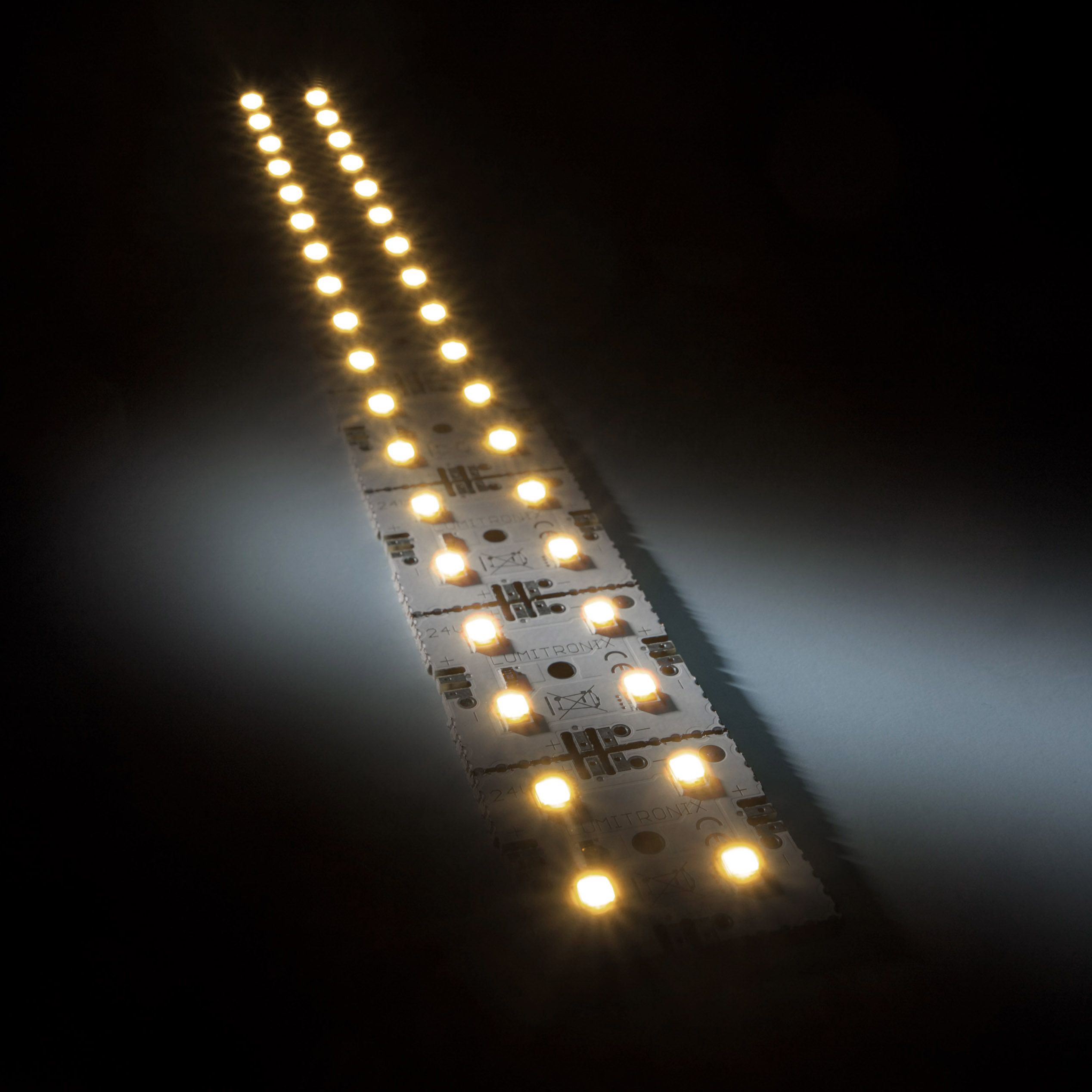

• MatrixMini-9-4080: 9 modules in a line of 27x3cm
• MatrixMini-126-4080: 126 modules in a rectangle of 42x27cm

Features

• Ultra high luminous flux of up to 83.700 lm per square meter
• Cost reduction thanks to very high efficiency and durability
• Each Matrix segment can be combined with other segments as desired
• With our direct connectors the Matrix segments can be seamlessly connected together as usual
• Highest flexibility thanks to compact structure
• Easy installation
• High quality Nichia 757G LEDs
• Combine with our Multibar strips & accessories
• Free design: strips, surfaces, shapes
• Holes for the fixation with screws
• 5 years warranty
• Made in Germany

Application areas

• Construction of light forms
• Backlight behind translucent surfaces of barisol, plexiglass, stone, etc ...
• Illuminated showcases
• Construction of lighting fixtures or LED panels
• General lighting with a long lifetime in shops, offices, TV studios, cabinets, clinics or in the home
• Reconstruction/refitting of old luminaries to LED technology

Technical data:

• 9 modules in a line of 27x3cm with 36 Nichia 757G LEDs
• Color temperature 2700K with CRI85+
• Luminous flux 615lm
• Typical power consumtion 4.3W at 24V
• (LxWxH) 30 x 30 x 2.5mm (each segment)
• Diameter borehole: approx. 3mm
• Distance boreholes (centre/centre): approx. 30 mm
