Lumistrips is brand of high performance LED light solutions made in Germany. As part of the early success of LEDs we have extensive application knowledge from a wide range of sectors. Since 2010, we have developed and produced high quality LED strips & modules in a state-of-the-art production facility in Germany. Our LED strips and modules, internationally sold under the LUMISTRIPS brand, use original packaged LEDs from NICHIA, SEOUL SEMICONDUCTOR or SAMSUNG combined with the best PCB and circuit materials.
Our products have been used successfully in a wide range of applications by customers in Europe, North & South America, Asia, Australia.
The MatrixMini is the solution for creating luminaires with large, light surfaces through uniform, economical, and durable backlighting. Measuring just 3x3 cm, each MatrixMini module features an innovative Plug & Play interconnect system that enables the easy creation of various light shapes for diverse applications. This large MatrixMini module provides a luminous flux of up to 10,000lm at 4000K, making it perfect for room lighting or large surface fixtures.
With MatrixMini's 4 LED modules, creativity has no bounds. These modules can be ordered in fully pre-assembled forms or separated into smaller modules up to 3x3 cm. Choose from MatrixMini-4-4080 (4 modules in a 6x6cm square), MatrixMini-25-4080 (25 modules in a 15x15cm square), MatrixMini-9-4080 (9 modules in a line of 27x3cm), or MatrixMini-126-4080 (126 modules in a rectangle of 42x27cm). Installation is quick and easy, thanks to MatrixMini's strengths, such as the high-performance Nichia 757 LEDs that provide a huge light output of up to 80,000 lm/square meter with a minimum power consumption and a lifetime of over 100,000 hours.

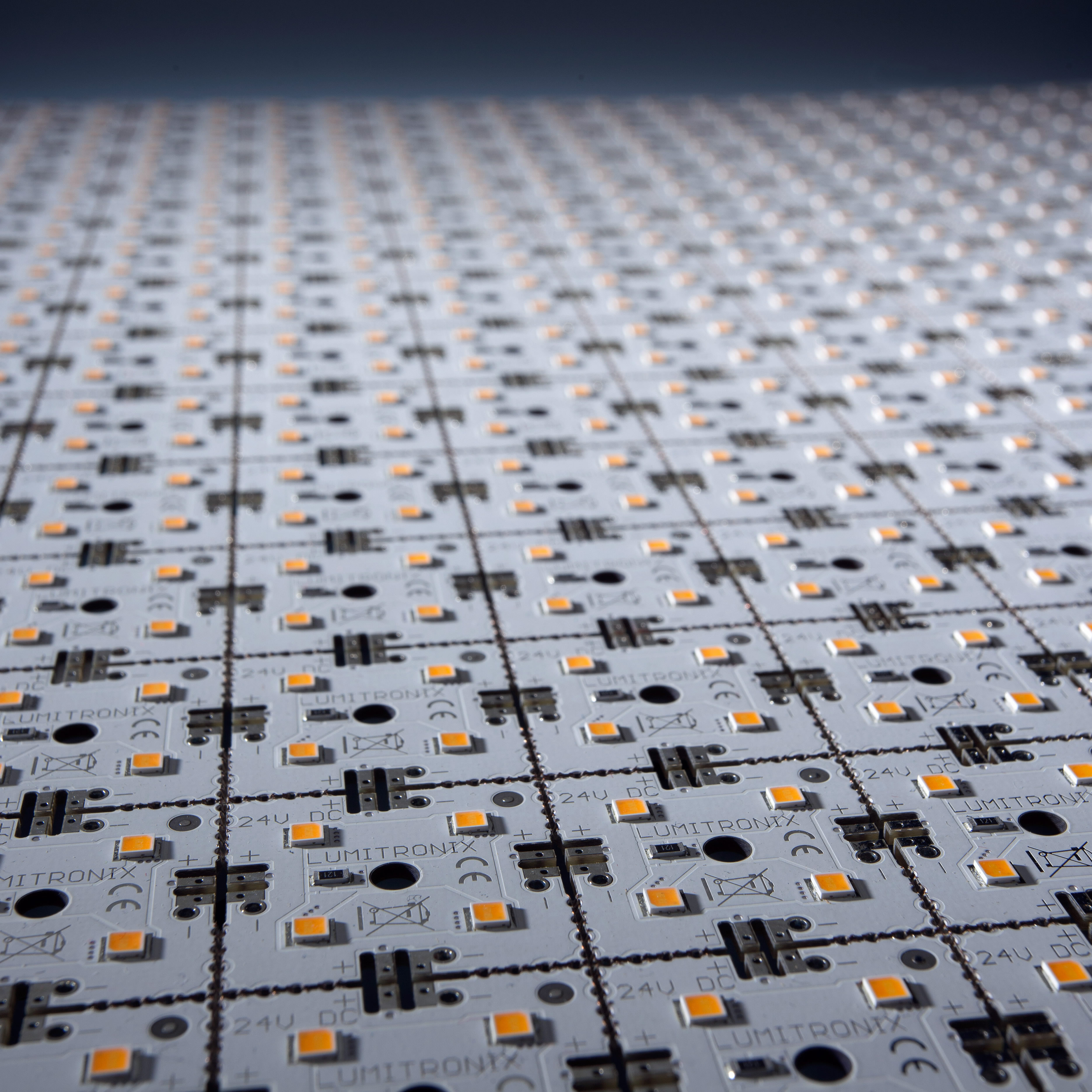

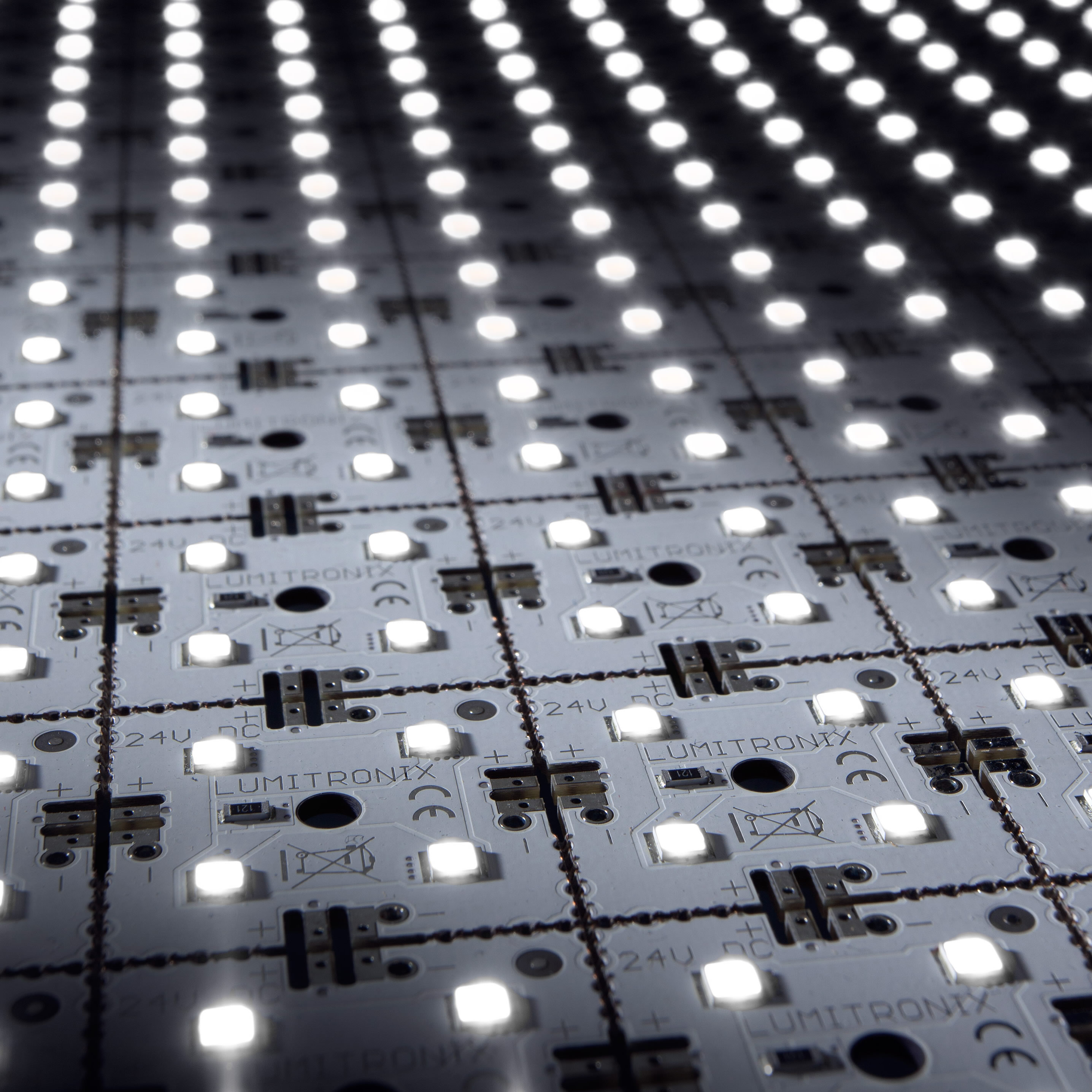

The MatrixMini is designed to be delivered in one piece with a size of up to 19 x 14 segments (4 LEDs per segment) and functions as one large PCB. However, it can be separated by hand without tools, with each segment working individually. The four sides of each square segment provide connectors, enabling the creation of long strings, complex shapes, or large surfaces with ease. The direct connectors allow for easy connection of individual Matrix segments without any soldering required!
The MatrixMini is not just a technical module for promotional signs, illuminated letters, or ambiance lighting; it can also be installed directly to the ceiling or wall without any provisions (24 V) as a technical luminary. Whether you need large letters, long strings, or huge surfaces, the Ledrise LED Matrix concept allows unlimited variety with one single product.
The MatrixMini is the best choice for projects requiring intense light, with LEDs installed in shapes inside luminaires, directly visible or behind a translucent material such as plexiglass, stone, marble, or barisol. The Nichia LED Matrix comes with a 5-year warranty and can be extended up to 7 years in some cases, ensuring a secure investment with minimal maintenance costs and reduced power consumption.
Some of the features of the MatrixMini include ultra-high luminous flux of up to 83,700 lm per square meter, very high efficiency and durability that reduce costs, the ability to combine each Matrix segment as desired, and seamless connection of Matrix segments together. The compact structure provides the highest flexibility, easy installation, and use of high-quality Nichia 757G LEDs. Combine with our Multibar strips and accessories for even more design flexibility.
The MatrixMini is perfect for constructing light forms, backlighting behind translucent surfaces such as barisol, plexiglass, stone, and more. It is also ideal for constructing lighting fixtures or LED panels, general lighting with a long lifetime in shops, offices, TV studios, cabinets, clinics, or in the home, as well as refitting old luminaries to LED technology.

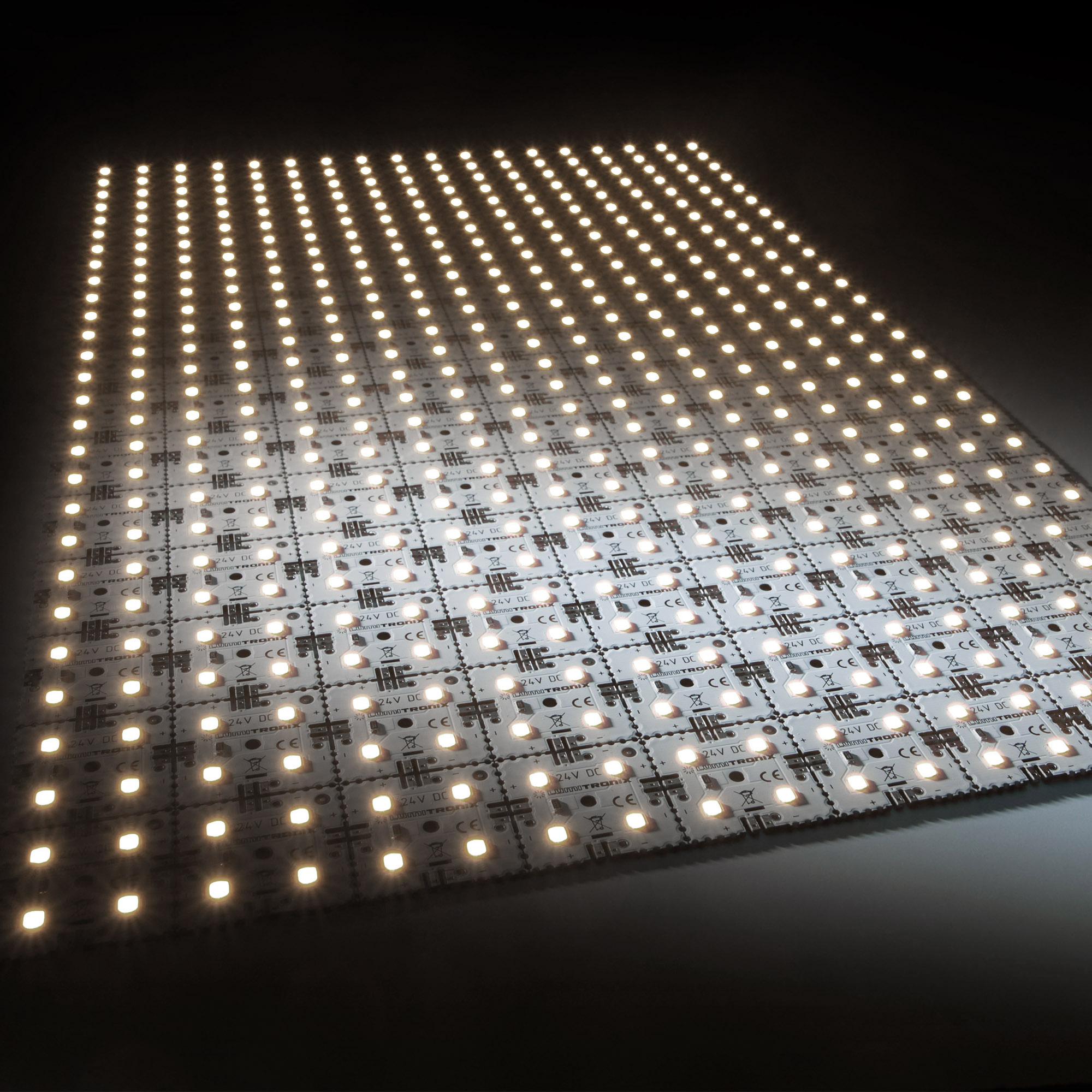

The technical data for the MatrixMini includes 126 modules in a rectangle of 42x27 cm, with 504 Nichia 757G LEDs, color temperature of 4000K with CRI85+, luminous flux of 9500lm, typical power consumption of 60.5W at 24V.
The freedom of creativity is enhanced by the fact that the MatrixMini 4 LED modules can be ordered in fully pre-assembled forms that can also be separated into smaller modules up to 3x3 cm:
Features
Application areas
Technical data:
SKU | 52719 |
---|---|
Weight brut (g) | 1.000000 |
Color | Neutral White |
Color Temperature | 4000K |
Color Rendering Index | 85 |
Luminous Flux Typ (lm) | 9500 |
Efficacy (lm per W) | 142 |
Energy Class 2022 | D |
Power (W) | 60.5 |
Viewing Angle | 120° |
Warranty (months) | 60 |
Lifetime for residential, 3h daily (yrs) | 92 |
Product lifetime (h) | 100000 |
Lifetime for commercial, 12h daily (yrs) | 23 |
Forward Current Max | 2520mA |
Manufacturer Product Code | 52719 |
Product Family | MatrixMini4080 |
Strip Type | Rigid |
LEDs number per sales unit | 504 |
Dimensions | 270x420 |
Dimensions: Length (cm) | 27 |
Dimensions: Width (mm) | 42 |
Brand | Lumistrips |
Forward Voltage Typ (V) | 24 |
Availability beyond shown stock: | YES |
