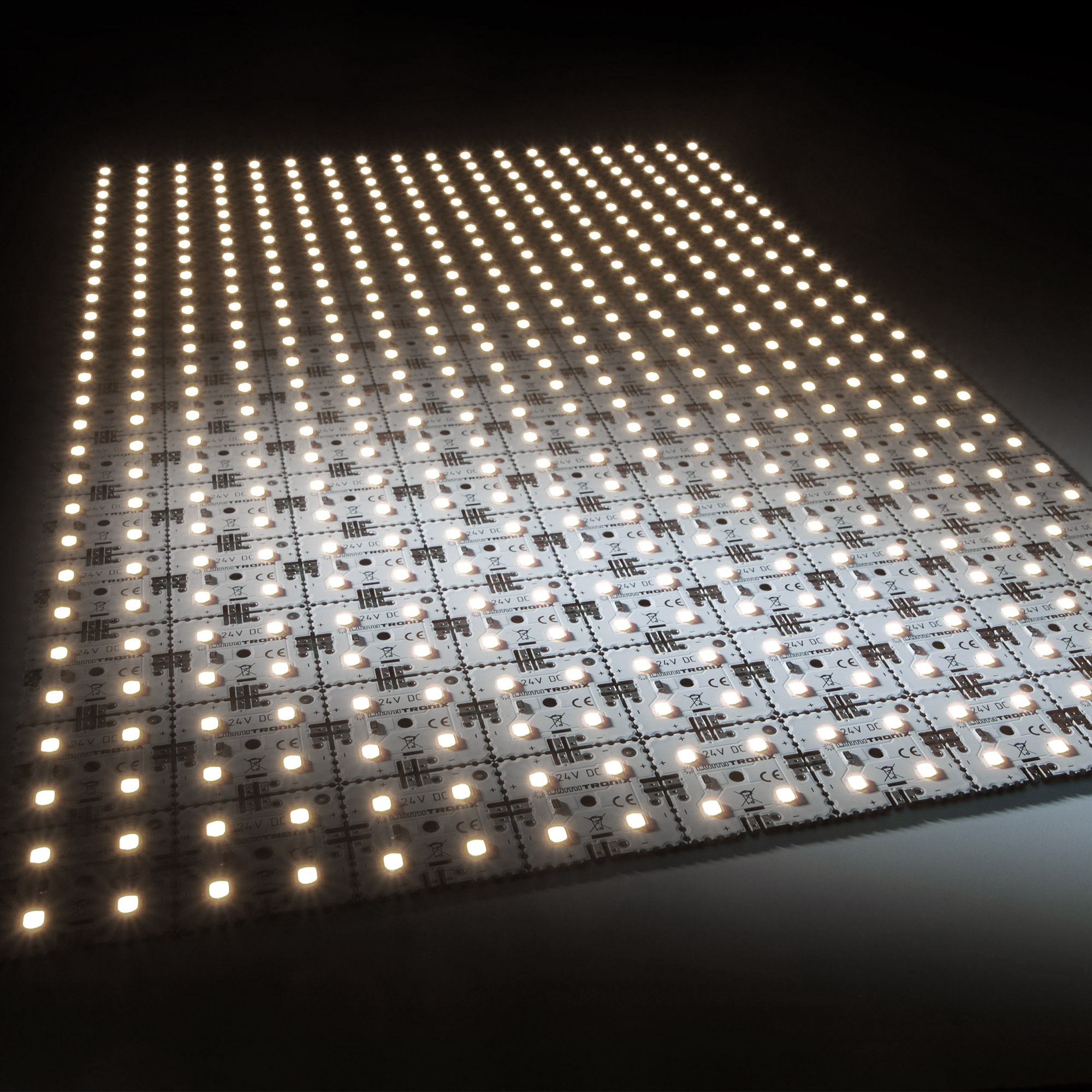

The MatrixMini modules are an ideal solution for constructing luminaires with large, light surfaces in a uniform, economical, and durable way. Each 3x3 cm module is equipped with an innovative Plug & Play interconnect system that makes it easy to build a wide variety of light shapes for different applications. The 128 MatrixMini module is perfect for room lighting or large surface light fixtures, boasting a luminous flux of up to 10,040lm.
The MatrixMini 4 LED modules are available in fully pre-assembled forms that can be separated into smaller modules up to 3x3 cm, giving you the freedom to create unique lighting designs. Choose from a range of options, including MatrixMini-4-4080, MatrixMini-25-4080, MatrixMini-9-4080, and MatrixMini-126-4080.
One of the strengths of the MatrixMini modules is their ease of installation. The high-performance Nichia 757 LEDs provide a huge light output of up to 80,000 lm / square meter with minimal power consumption and a lifetime of over 100,000 hours. Thanks to innovative design techniques, the LED efficiency stands at a minimum of 143 lm/Watt, and the Matrix hardly gets warm, making cooling unnecessary.

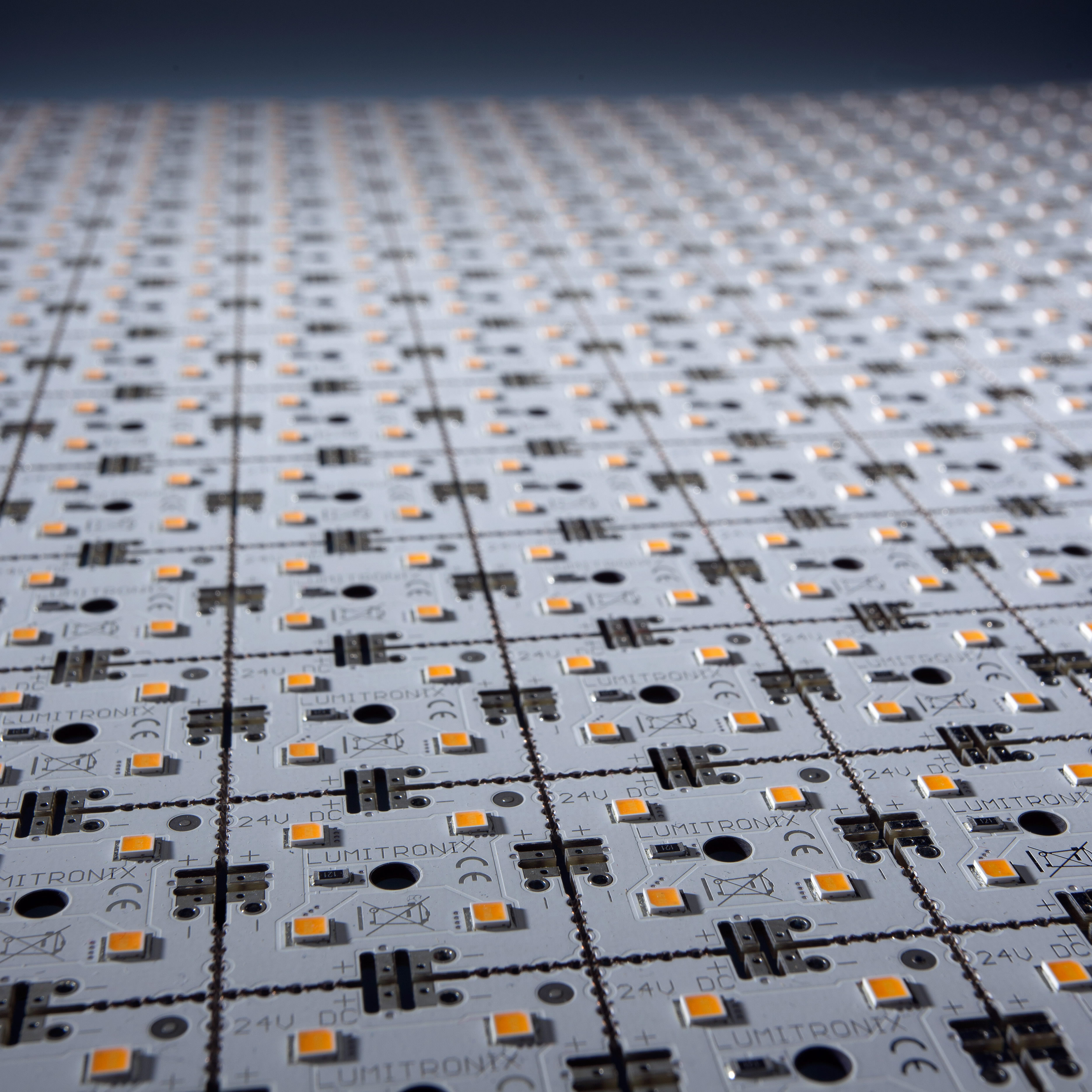

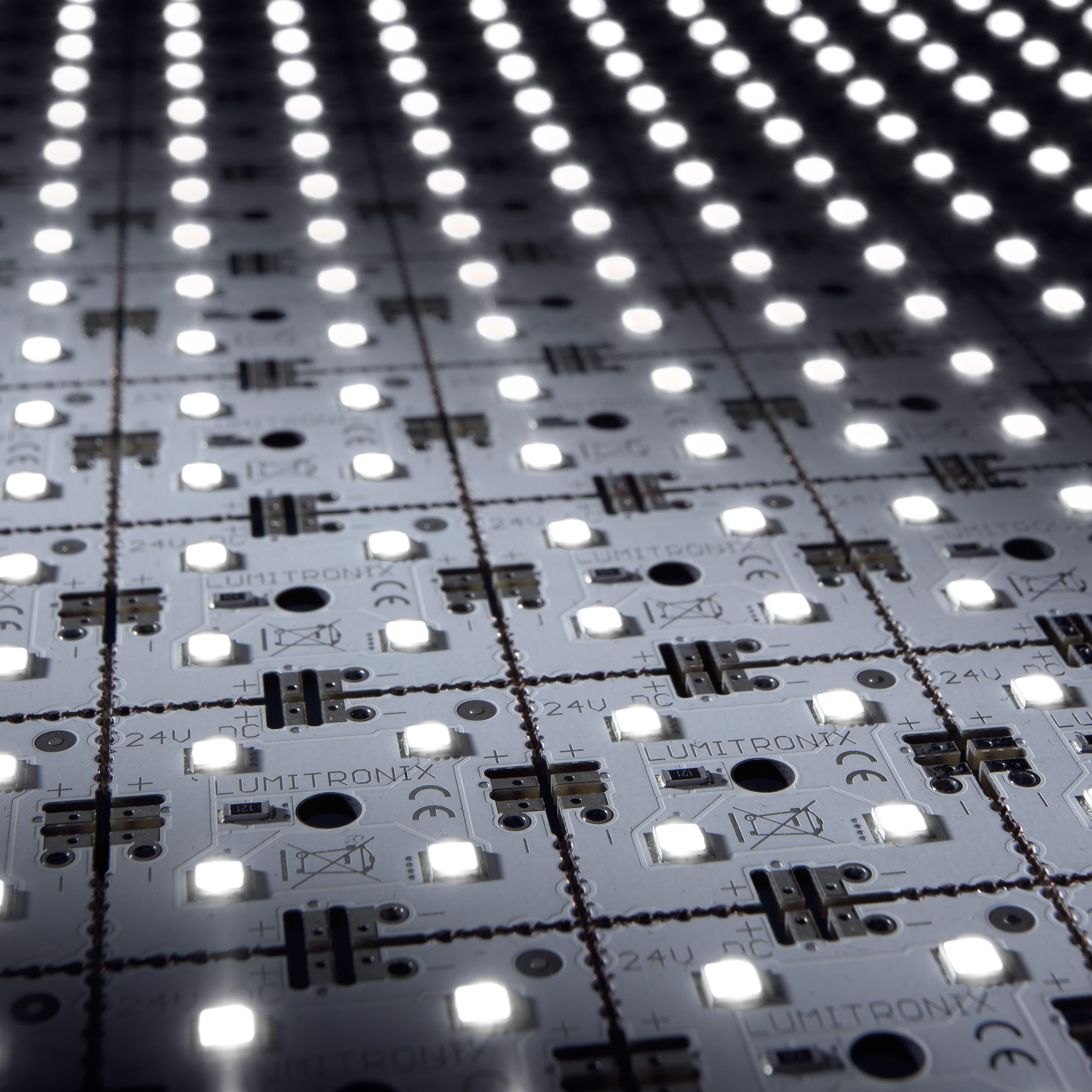

The Matrix is designed to be delivered in one piece with a size of up to 19 x 14 segments, and it operates like one large PCB. However, the Matrix can also be separated by hand without any tools, with each segment working individually. The four sides of each square segment provide connectors that enable long strings, complex shapes, or large surfaces to be built with them, and they can be easily connected to each other with direct connectors. No soldering is required!
The Matrix can be used as a technical module for promotional signs, illuminated letters, or ambiance lighting, but it can also be installed directly to the ceiling or wall without any provisions (24 V) as a technical luminary. The Ledrise LED Matrix concept allows for an unlimited variety of large letters, long strings, or huge surfaces with one single product.
The MatrixMini modules feature high-quality Nichia 757G LEDs and are incredibly flexible due to their compact structure, making them the best choice for projects that require intense light with LEDs installed in shapes inside luminaires or behind a translucent material. They also feature holes for fixation with screws, and their 5-year warranty can be extended up to 7 years in some cases. With minimal maintenance costs and reduced power consumption, the MatrixMini is a sound investment that is sure to provide reliable and long-lasting lighting solutions for a range of applications.
The freedom of creativity is enhanced by the fact that the MatrixMini 4 LED modules can be ordered in fully pre-assembled forms that can also be separated into smaller modules up to 3x3 cm:
Features
Application areas
Technical data:
| SKU | 52721 |
|---|---|
| Weight brut (g) | 270.000000 |
| Color | Neutral White |
| Color Temperature | 5000K |
| Color Rendering Index | 85 |
| Luminous Flux Typ (lm) | 10040 |
| Efficacy (lm per W) | 149 |
| Energy Class 2022 | D |
| Power (W) | 60.5 |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Forward Current Max | 2520mA |
| Manufacturer Product Code | 52721 |
| Product Family | MatrixMini4080 |
| Strip Type | Rigid |
| LEDs number per sales unit | 504 |
| Dimensions | 270x420 |
| Dimensions: Length (cm) | 27 |
| Dimensions: Width (mm) | 42 |
| Brand | Lumistrips |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | YES |
