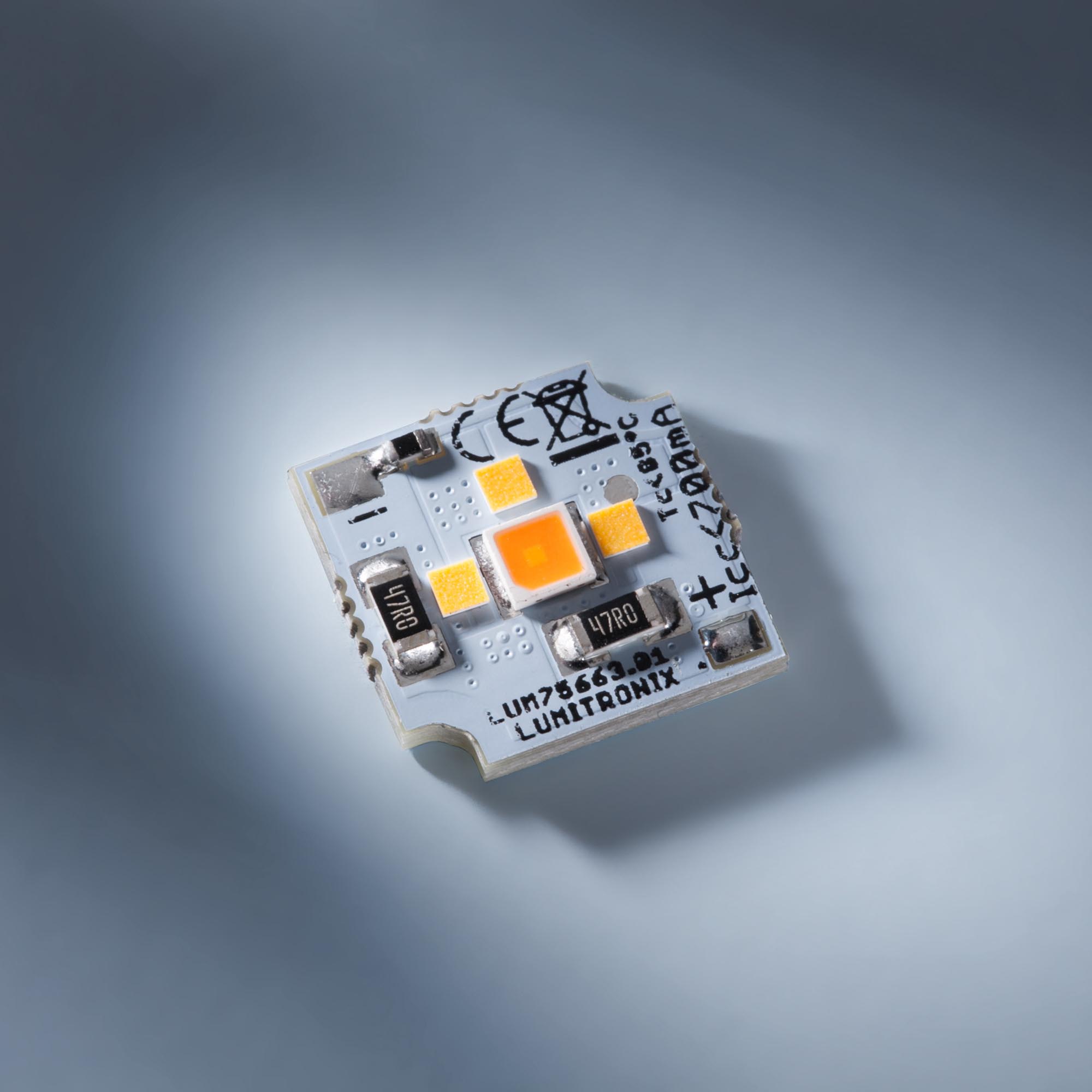

Nichia LED Module SmartArray Dim2Warm Q3+1 350mA White 2000-5000 3W 314lm
- Smart Array series designed for lighting manufacturers with excellent price-performance ratio, high efficiency, and exceptional optical characteristics
- Smart Array q3+1 dim2warm features intelligent circuit that changes color temperature when dimmed, achieving incandescent-like color performance with warmer light and reduced brightness without need for additional controller
- Nichia LEDs in 3-step MacAdam binning offer excellent efficiency up to 120lm/W
- Small module size (13.5x13x3mm) with typical luminous flux of up to 315 lumens and easy installation with recesses for screw fixing and double-sided thermally conductive adhesive pad
- Color temperature of 5000K to 2000K, constant current LED module at 350mA, natural color rendering with CRI > 80, and uniform white light by Nichia binning (3-step MacAdam)
- Long life with 5-year warranty, substitute for COB modules, and ideal for luminaire manufacturers and industrial applications.
The Smart Array series is designed specifically for lighting manufacturers and offers an impressive price-performance ratio, high efficiency, and exceptional optical properties. The Smart Array q3+1 dim2warm module is particularly noteworthy due to its ability to change color temperature when dimmed, thanks to its intelligent circuit that adjusts based on the operating current. This feature produces an incandescent-like color performance with warmer light and reduced brightness, without the need for an additional controller.
The 3-step macadam binning Nichia LEDs used in the module provide excellent efficiency of up to 120lm/w. The compact 13.5x13mm module delivers a luminous flux of up to 347lm at a power of 3W, making it ideal for a wide range of designer lights that require a small form factor. The module's printed circuit board is designed with recesses for screw fixation, and it comes with a double-sided and thermally conductive adhesive pad, allowing for easy installation.
Additional features of the Smart Array q3+1 dim2warm module include a color temperature range of 5000k to 2000k, a constant current led module (350ma), and typical efficiency of up to 120lm / w. The module also offers a typical luminous flux of up to 315 lumens, natural color rendering with a CRI of over 80, and a long life with a 5-year warranty. It can be used as a substitute for COB modules and is an ideal solution for lighting manufacturers and industrial applications.
- Dim2warm technology = incandescent-like color temperature behavior when dimming down
- Color temperature: 5000k to 2000k
- Constant current led module (350ma)
- Typical efficiency of up to 120lm / w
- Typical luminous flux of up to 315 lumens
- Natural color rendering with a cri> 80
- Very small dimensions: 13,5x13x3mm only
- Easy mounting thanks to recess for screw fastening
- Double-sided, thermally conductive adhesive pad
- Uniform white light by Nichia binning (3-step macadam)
- Long life with 5 years warranty
- Substitute for cob modules
- Ideal for luminaire manufacturers and industrial applications
- 5 Years warranty
| SKU | 30053 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color Rendering Index | 80 |
| Color | Warm White |
| Viewing Angle | 120° |
| Luminous Flux Typ (lm) | 314 |
| Forward Current Typ | 350ma |
| Forward Voltage Typ (V) | 8.7 |
| LED Power (W) | 3 |
| Efficacy (lm per W) | 105 |
| Manufacturer Product Code | 30053 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127455435 |
| Availability beyond shown stock: | NO |
| Dimensions: Length (cm) | 1.30 |
| Dimensions: Width (mm) | 0.20 |
| Dimensions: Height (mm) | 1.30 |
