Introducing the new generation high-power UV LED from Nichia, the NCSU033C. This new LED brings an 80% increase in radiant flux for 365nm at the same power consumption of 1.9W, compared to the previous version. With a radiant power of 750mW at 500mA, the NCSU033C is the perfect solution for high-power UV applications.

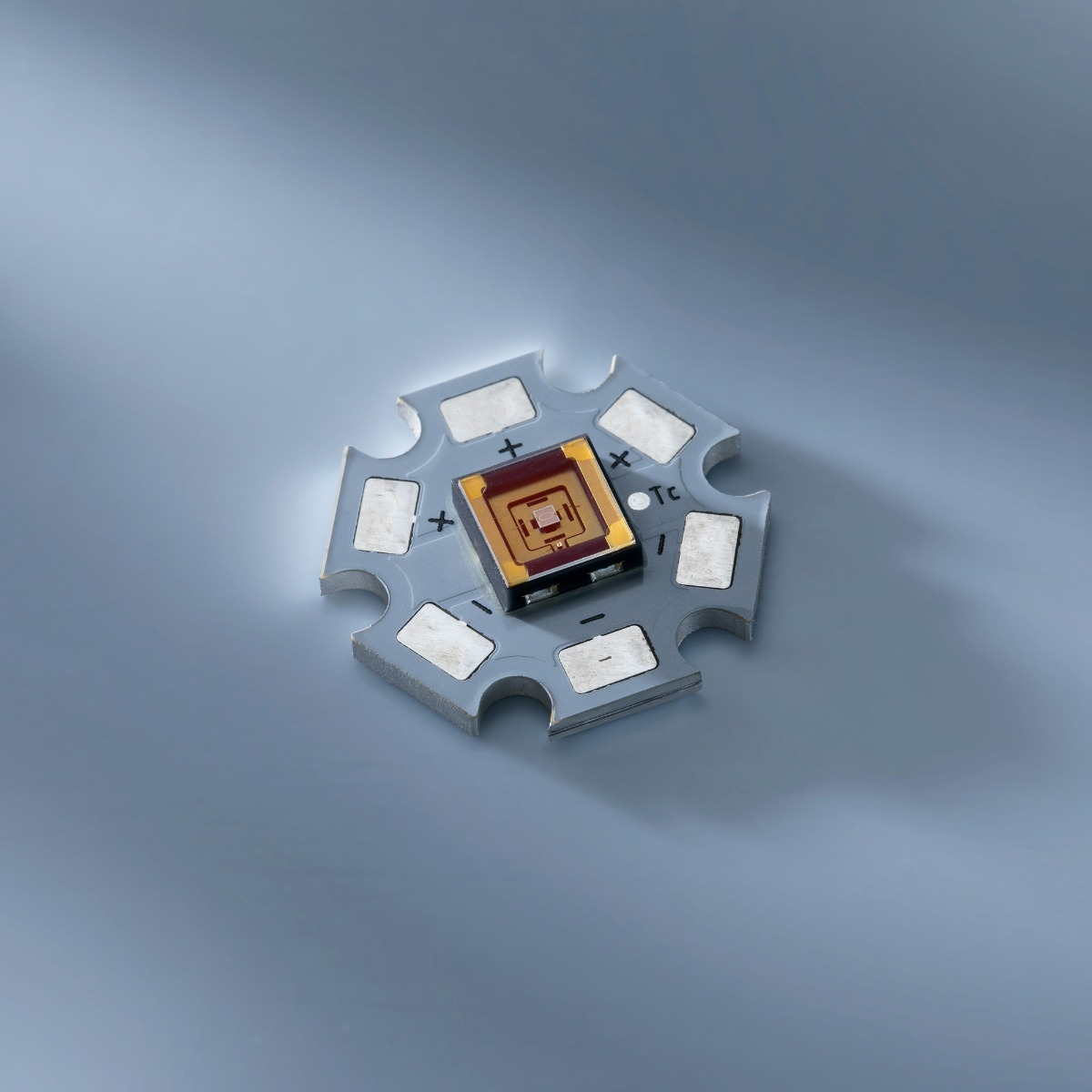

Our PCB UVA LED modules make it easy to harness the power of the high-performance Nichia LED for your application without the need for reflow soldering or a sophisticated soldering station. The Star PCB is made in Germany and ensures the best heat transfer and longest LED lifetime. Solder pads are easy to connect with a basic soldering iron, making it ideal for small projects, rapid prototyping, or custom builds.
As the world's largest LED manufacturer and inventor of the blue (and thus also white) light-emitting diode, Nichia is a trusted leader in the LED industry. Nichia's innovative research department is always at the forefront of efficiency and regularly sets new records. Durability, brightness, and efficiency are among the great strengths of the Nichia brand.

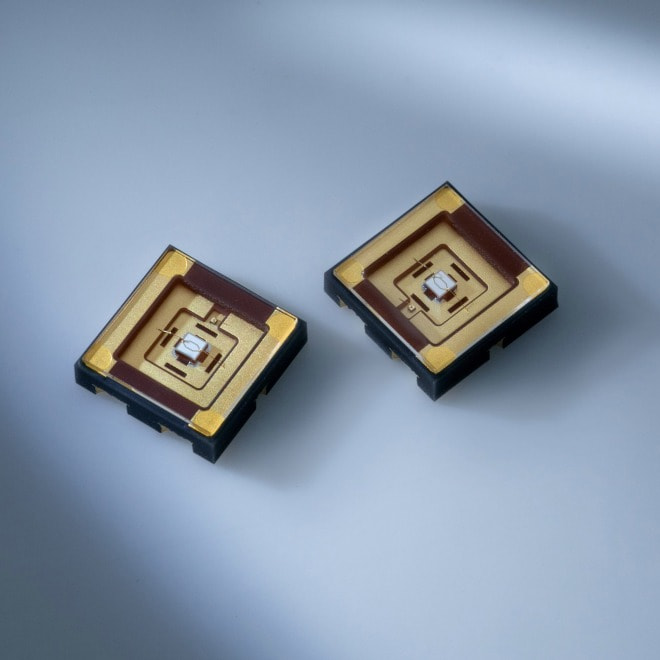

Features of the NCSU033C include a high-power UV LED at 365nm, 033 Package on star PCB, 750mW at 500mA, and a typical power consumption of 1.9W. The LED has a risk group of 3 (EN 62471) and a 120-degree viewing angle. The LED dimensions are 6.8 x 6.8 x 1.93 mm.
Features of the NCSU033C
Application areas
Application focus: Continuous disinfection with safe UVA radiation
|
Continuous disinfection: UVA radiation functioning 8 hours, daily. Safe for people*. Will kill up to 99% of viruses and bacteria. |
*Irradiance limited to 10W/m2 at 2 meters height from the floor.
|
Continuous disinfection efficiency confirmed by studies**: "<8 hours & Irradiance 3W/m2: up to 99% eradication of Staphylococcus aureus and Escherichia coli12” "<8 hours & Irradiance 3W/m2: up to 99% eradication of MRSA, Candia auris, virus Phi X174 ,virus MS-213” |
**details in the article at this link.
Irradiance estimation for a 365 nm UVA LED with 1 Watt Radiant Power: Warning UV danger for eyes and skin
UVA radiation in the wavelength range of 200-400 nm of more than 10W/m2 may cause inflammation of the cornea as well as a UV erythema (sunburn) of the skin. The biological effectiveness of the UV radiation varies in the stated wavelength range and is described with the spectral response function (weighting scale) SUV.
Safety precautions when using UV light sources must be respected, as detailed in IEC Standard 62471:2006, ‘Photobiological Safety of Lamps and Lamp Systems’, EU-Directive-2006-25-EC or the applicable standard for your country.
| SKU | 34539 |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Size | 6.8x6.8 mm |
| LED Family | Nichia UV (New!) |
| LED Application | Lithography, Curing |
| LED Installation Package | Star PCB |
| Color | UVA Ultraviolet |
| Viewing Angle | 120° |
| Forward Current Typ | 500ma |
| Forward Voltage Typ (V) | 3.8 |
| Power (W) | 1.9 |
| Forward Current Max | 700mA |
| Wavelength (nm) | 365 |
| Manufacturer Product Code | NCSU033C |
| Brand | Lumistrips |
| Availability beyond shown stock: | YES |
